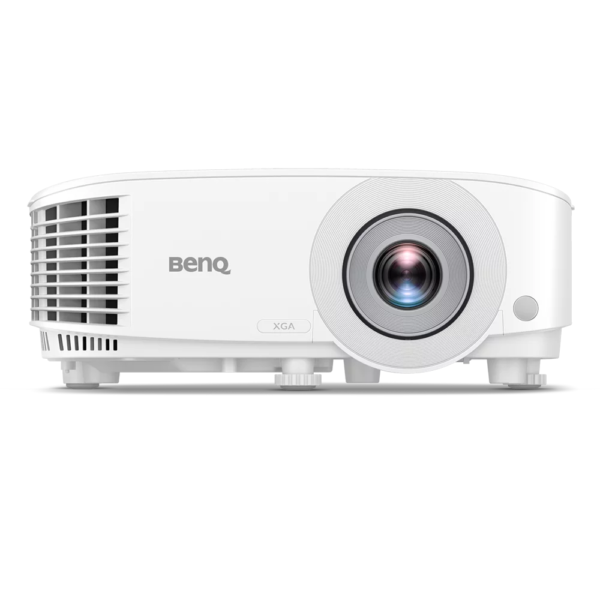

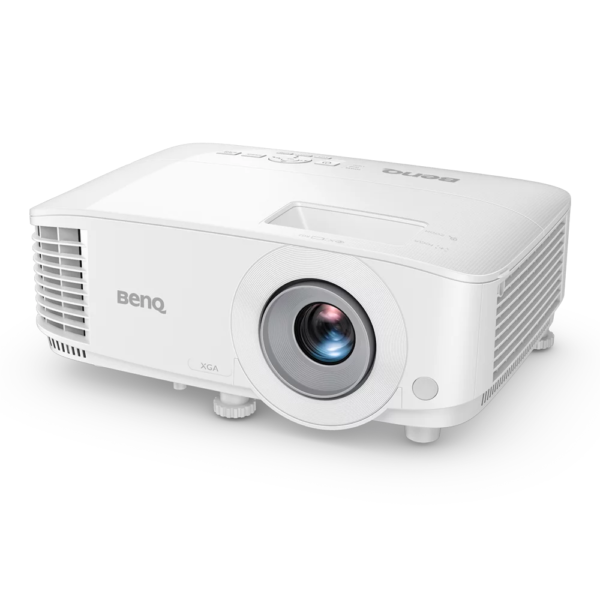

BenQ MX560 4000 ANSI lumens XGA Meeting Room Projector
BenQ MX560 XGA Meeting Room Projector is a powerhouse of visual performance, designed to enhance your presentations and multimedia experiences. With a host of impressive features and cutting-edge specifications, this projector sets the stage for impactful meetings and immersive content delivery. From its remarkable brightness and contrast to its versatile connectivity options and user-friendly adjustments, the MX560 is a top choice for professional environments. In the following table, we present a comprehensive overview of its key specifications, making it easy to understand the capabilities that set this projector apart.
BenQ MX560 4000 ANSI lumens XGA Specifications:
Specification | Details |
---|---|
Display | |
Brightness (ANSI lumens) | 4000 |
Native Resolution | XGA (1024×768) |
Native Aspect Ratio | 4:3 |
Contrast Ratio (FOFO) | 20,000:1 |
Display Color | 30-bit (1.07 billion colors) |
Light Source | Lamp |
Light Source Life | a. Normal 6000 hrs, b. ECO 10000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs |
Optical | |
Throw Ratio | 1.96~2.15 |
Zoom Ratio | 1.1x |
Lens | F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm |
Projection Offset (Full-Height) | 110% |
Keystone Adjustment | 1D, (Auto) Vertical ± 40 degrees |
Picture | |
Picture Modes | 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2 |
Compatibility | |
Resolution Support | VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking |
Horizontal Frequency | 15K~102KHz |
Vertical Scan Rate | 23~120KHz |

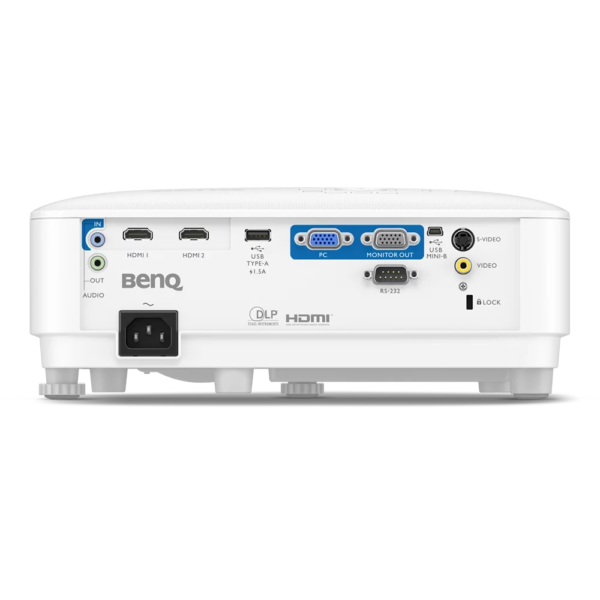

I/O Interface | |
PC in (D-sub 15pin) | (x1) |
Monitor out (D-sub 15pin) | (x1) |
Composite Video in (RCA) | (x1) |
S-Video in (Mini DIN 4pin) | (x1) |
HDMI in | (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4) |
USB Type A | (x1) |
USB Type Mini B | (x1) |
RS232 in (DB-9pin) | (x1) |
Audio | |
Speaker | (x1), 10W |
Audio in (3.5mm Mini Jack) | (x1) |
Audio out (3.5mm Mini Jack) | (x1) |
Environment | |
Operating Temperature | 0~40℃ |
Power Supply | AC 100 to 240 V, 50/60 Hz |
Typical Power Consumption (110V) | 260W/110V |
Acoustic Noise (Typ./Eco.)(dB) | 34/29 |
Accessories | |
Carry Bag | Yes, 5J.J3T09.001 (optional) |
Remote Control w/ Battery | RCX016 |
Power Cord (by region) | x1 (1.8M) |
VGA(D-sub 15pin) Cable | 1 (1.5m) |
3D Glasses (Optional) | DGD5 |
Quick Start Guide | (x1) 21L |
Warranty Card (by region) | Yes |
Universal Ceiling Mount (Optional) | CM00G3 |
Dimension & Weight | |
Dimensions (WxHxD) (mm) | 296 x 120 x 221 |
Net Weight (kg) | 2.3 |
Projection System | |
Projection System | DLP |
BenQ MX560 4000 ANSI lumens XGA Description:
BenQ MX560 is a powerful and versatile XGA meeting room projector designed to elevate your presentations to the next level. With a range of impressive features and specifications, this projector is tailor-made for professional environments. Here’s an overview of its key specifications:
1. Exceptional Brightness and Contrast:
- Boasting 4000 ANSI lumens of high brightness, the MX560 ensures that your presentations remain vivid and clearly visible, even in well-lit meeting rooms.
- A remarkable 20,000:1 contrast ratio (FOFO) guarantees sharp differentiation between dark and light areas, enhancing the quality of your displayed content.
2. Enhanced Display Quality:
- The projector’s native XGA resolution (1024×768) provides a balanced combination of clarity and compatibility with various devices.
- With a 30-bit display color supporting 1.07 billion colors, your visuals will be rich and true to life.
3. Extended Lamp Life:
- The MX560 offers multiple lamp modes, providing versatility and longevity:
- Normal mode: Up to 6000 hours
- ECO mode: Up to 10000 hours
- SmartEco mode: Up to 10000 hours (saves power up to 70%)
- LampSave mode: Up to 15000 hours
4. Optical Features:
- The projector has a throw ratio ranging from 1.96 to 2.15, accommodating various projection distances.
- It offers a 1.1x zoom ratio for convenient image size adjustments.
- The lens specifications include an F/# of 2.56 to 2.68 and a focal length of 22 to 24.1 mm.
5. User-Friendly Adjustments:
- Keystone adjustment is supported, allowing for vertical correction up to ±40 degrees.
- You can choose from various picture modes like 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, and User 2 to optimize your display settings.
6. Connectivity Options:
- The MX560 is equipped with multiple I/O interfaces, including HDMI (x2), VGA, USB, RS232, and audio connections, ensuring seamless connectivity to your devices.
- A built-in 10W speaker offers audio playback capabilities.
7. Environmental Considerations:
- The projector operates within a temperature range of 0 to 40 degrees Celsius.
- It supports a wide range of power supply (AC 100 to 240 V, 50/60 Hz) and has a typical power consumption of 260W/110V.
- In Eco mode, it maintains an acoustic noise level of 29 dB.
8. Accessories and Dimensions:
- Included accessories are a carry bag, remote control with battery, power cord, VGA cable, and more.
- The projector’s compact dimensions (296 x 120 x 221 mm) and light net weight (2.3 kg) make it portable and easy to set up in various meeting room configurations.
9. Projection System:
- The MX560 features a DLP (Digital Light Processing) projection system, known for its high-quality image rendering.
With its combination of high brightness, contrast, and versatile features, the BenQ MX560 XGA Meeting Room Projector is an ideal choice for professional presentations in meeting rooms, boardrooms, and other business settings.
