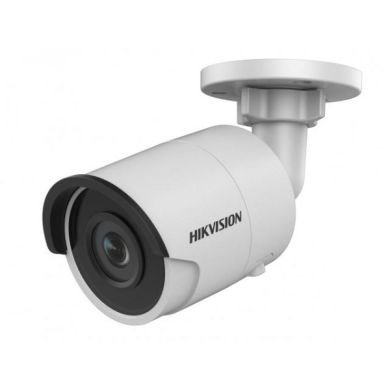

Hikvision DS-2CD2025FHWD-I 2MP EXIR Mini Bullet Network Camera (Ultra Low Light)

Camera Basics

• Model: DS‑2CD2025FHWD‑I (fixed‑lens bullet camera, available with 2.8 mm, 4 mm, 6 mm, 8 mm, or 12 mm lens)

• Sensor: 1/2.8″ Progressive Scan CMOS

• Resolution: 2MP (1920×1080) at up to 60fps (NTSC) or 50fps (PAL)

• Technology: Hikvision DarkFighter ultra-low-light performance

Low-Light & Dynamic Range

• Minimum Illumination:

  • Color: 0.005 Lux @ F1.2 (AGC ON), or 0 Lux with IR

  • Color: 0.009 Lux @ F1.6 (AGC ON), or 0 Lux with IR

• Wide Dynamic Range (WDR): True 120 dB

• Digital Noise Reduction: 3D DNR

• Other Features: BLC, HLC

Lens & Field of View

• Lens Options: Fixed lenses (2.8, 4, 6, 8, or 12 mm)

• Aperture: F1.6

• Horizontal FOV:

  • 2.8 mm ≈ 108°

  • 4 mm ≈ 86.4°

  • 6 mm ≈ 52°

  • 8 mm ≈ 41°

  • 12 mm ≈ 25°

Image Features

• Day/Night Switching: IR-cut filter (auto/manual/schedule)

• Slow Shutter: Supported

• Angle Adjustment:

  • Pan: 0–360°, Tilt: 0–90°, Rotate: 0–360°

• Image Settings: Saturation, brightness, contrast, sharpness, white balance, AGC

Video Streams & Compression

• Streams: Triple stream

• Main Stream: Up to 1920×1080 at 50/60fps

• Sub/Third Stream: Lower resolutions

• Compression Standards: H.265+, H.265, H.264+, H.264, MJPEG

• Bitrate Range: 32kbps to 16Mbps

• ROI (Region of Interest): One fixed ROI for main/sub streams

Networking & Storage

• Interface: 1× RJ45 10/100 Mbps Ethernet

• Protocols Supported: TCP/IP, HTTPS, RTSP, SNMP, IPv6, QoS, 802.1X, SSL/TLS

• ONVIF Compatibility: Profiles S, G, T

• User Management: Up to 32 users with admin/operator/user roles

• Storage Options:

  • Built-in microSD/SDHC/SDXC slot (up to 128GB)

  • Network storage (NFS, SMB/CIFS), ANR support

Smart Features & Events

• Basic Events: Motion detection, video tampering, network disconnection, illegal access, storage exception

• Smart Events: Line crossing, intrusion detection, unattended baggage, object removal, face detection, scene change

Power & Environment

• Power Supply: 12V DC (±25%) or PoE (IEEE 802.3af, Class 3)

• Power Consumption:

  • DC: ~5W

  • PoE: ~6.5W

• Operating Temperature: –30 °C to +60 °C

• Humidity: Up to 95% (non-condensing)

• Ingress Protection: IP67 (weather/dust proof)

Physical Specs

• Dimensions: Φ70 × 155.0 mm

• Weight: Approx. 410g

• Packaging Size: ~216 × 121 × 118 mm
