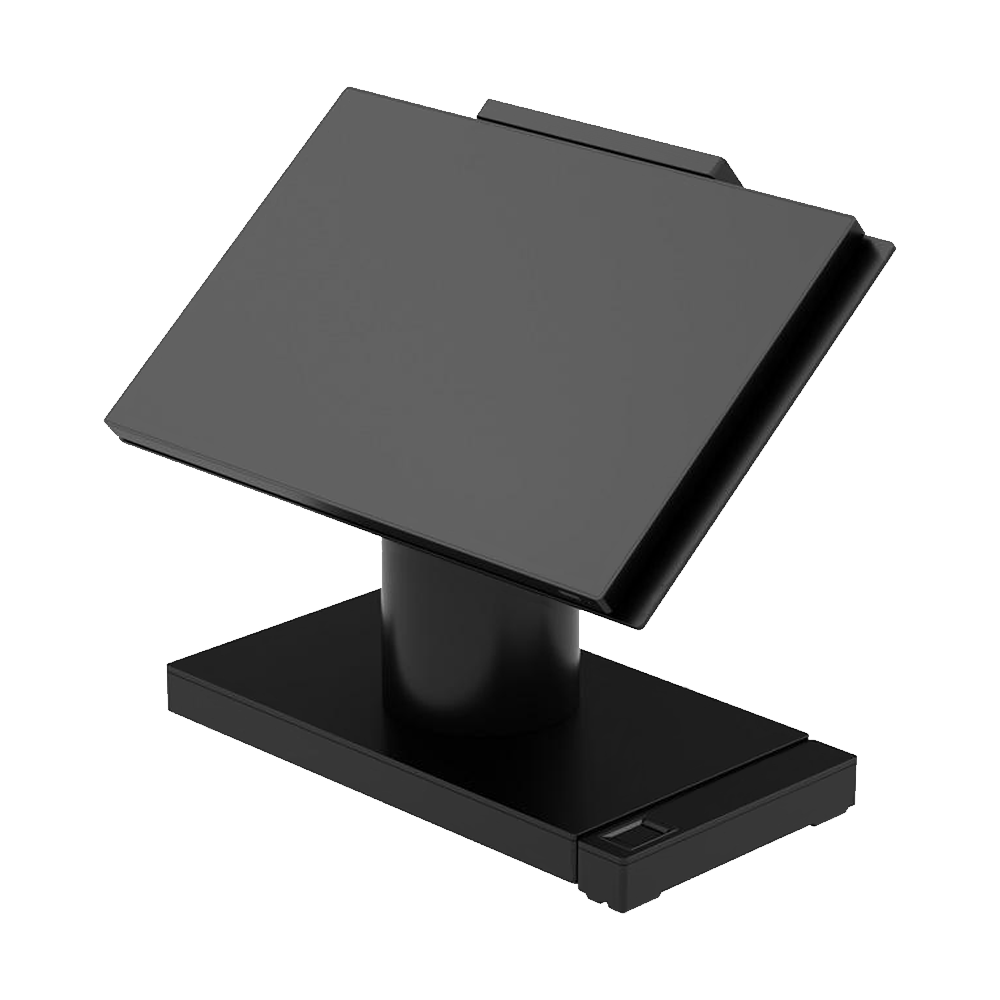

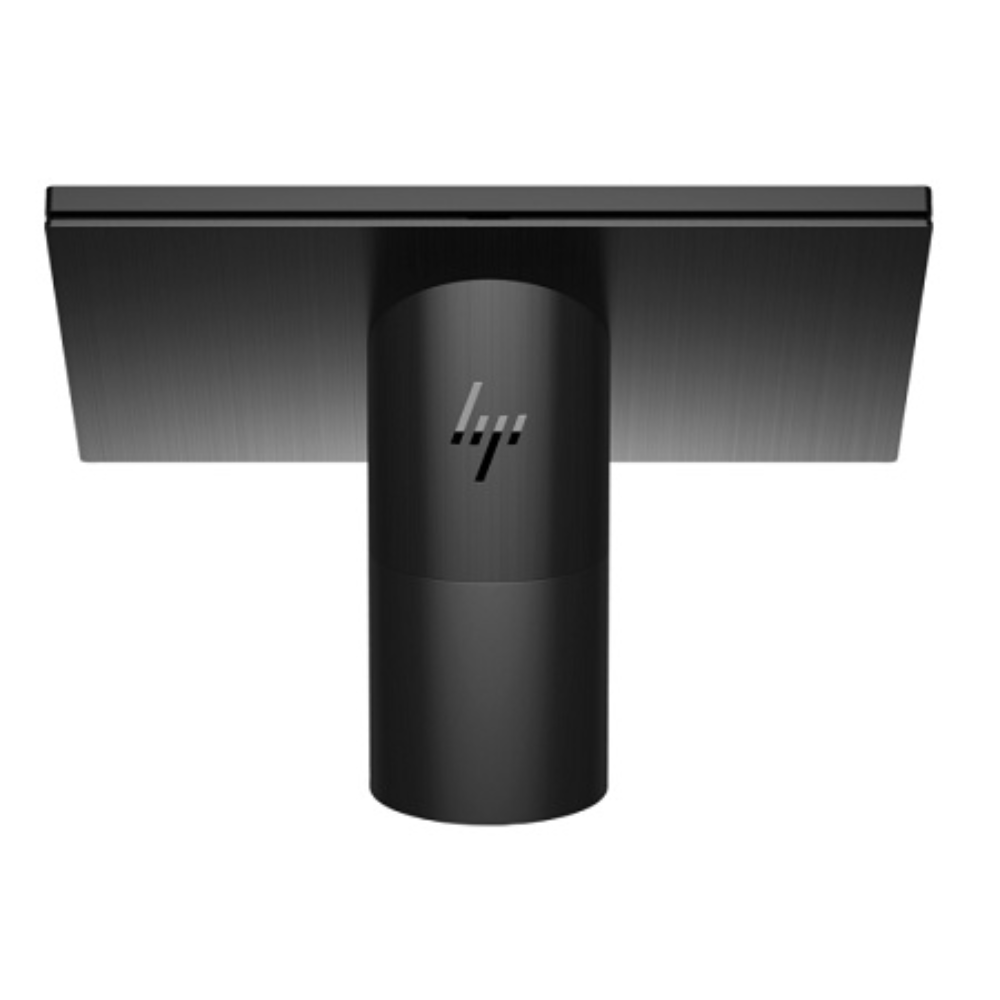

Hp Engage One 145 AiO 8GB RAM 256GB SSD

Core Specifications

• Display: 14.0-inch diagonal Full HD (1920 × 1080) anti-glare touch display

• Processor: Up to Intel® Core™ i5-7300U (7th Gen)

• Graphics: Integrated Intel® HD Graphics 620

• Memory: 2 × SODIMM slots supporting DDR4 RAM

• Storage:  256GB One M.2 slot supporting NVMe SSD

Ports and Connectivity

• Rear Ports:

  • 1 × Cash drawer connector

  • 1 × Power connector

  • 1 × RJ-45 LAN port

  • 1 × USB-C (charging and data)

  • 4 × USB 3.0 ports

  • 1 × Powered 24V USB port

  • 2 × Powered 12V USB ports

  • 2 × Serial ports

• Side Ports:

  • 1 × Headset connector

• Expansion Slots:

  • 1 × M.2 2230 slot

  • Built-in SD card reader

System Features

• Operating System Compatibility: Windows 10 IoT, Windows 11, Linux (select configurations)

• Networking: Gigabit Ethernet, optional Wi-Fi and Bluetooth modules

• Audio: Integrated stereo speakers and digital microphone

• Security: Trusted Platform Module (TPM 2.0), lock slot

Physical Specifications

• Head Unit Dimensions: 33.62 cm (W) × 21.64 cm (D) × 1.76 cm (H)

• Optional Stand with Printer Column: 9.6 × 9.6 × 26 cm

• Weight: Approximately 2.3 kg (varies by configuration)

Environmental

• Operating Temperature: 10°C – 40°C

• Storage Temperature: -20°C – 60°C

• Operating Humidity: 20% – 85% RH (non-condensing)

Additional Information

• Designed for retail and POS environments with dedicated cash drawer and MSR (magnetic stripe reader) support

• Low-halogen design for environmental efficiency

• Optional accessories include barcode scanner, receipt printer, and customer display
