General Specifications
| Feature | Specification |
|---|---|

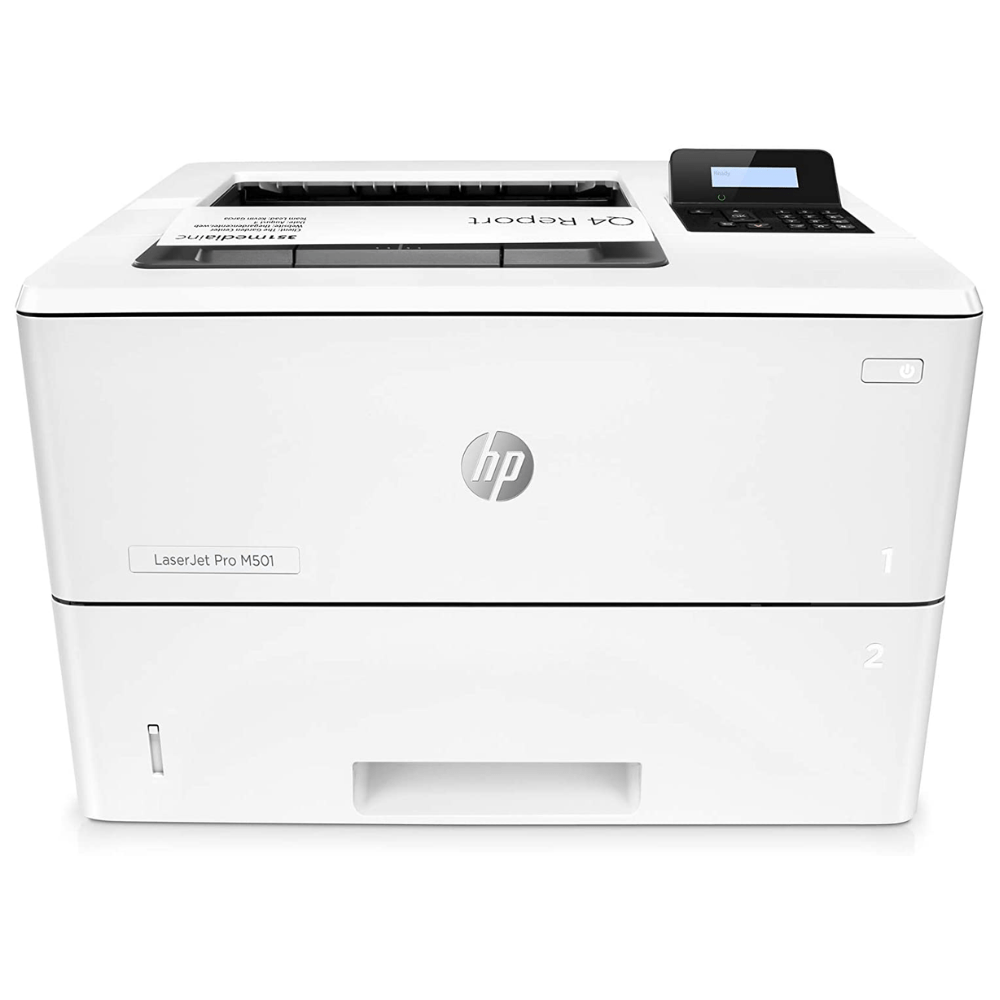

| Model | HP LaserJet Pro M501dn |
| Product Number | J8H61A |
| Printer Type | Monochrome Laser Printer |
| Functions | Print Only |
| Display | 2-line LCD with keypad |
| Processor | 1.5 GHz |
| Memory | 256 MB DDR3 |
| Automatic Duplex Printing | Yes (Built-in) |
| Monthly Duty Cycle | Up to 100,000 pages |
| Recommended Monthly Volume | 1,500–6,000 pages |
Print Specifications
| Feature | Specification |
|---|---|
| Print Technology | Laser |
| Print Speed (A4) | Up to 43 ppm |
| Print Speed (Letter) | Up to 45 ppm |
| First Page Out | As fast as 5.7 seconds |
| Print Resolution | 600 × 600 dpi |
| Enhanced Resolution | Up to 4800 × 600 dpi |
| Print Languages | PCL 5, PCL 6, PostScript 3 Emulation, PDF 1.7, URF, PCLM, PWG |
| Duplex Printing Speed | Automatic double-sided printing |
| Print Features | Secure Print, Direct PDF Printing, Watermarks, Booklet Printing |
Paper Handling
Standard Capacity
| Tray | Capacity |
|---|---|
| Tray 1 (Multipurpose) | 100 sheets |
| Tray 2 (Main Cassette) | 550 sheets |
| Total Standard Input | 650 sheets |
| Output Tray | 250 sheets |
Maximum Capacity
| Configuration | Capacity |
|---|---|
| Optional 550-sheet Tray | 1,200 sheets total |
Supported Media
- Plain paper
- Recycled paper
- Bond paper
- Cardstock
- Labels
- Envelopes
- Letterhead
- Pre-punched paper
Supported Media Weight
| Tray | Weight |
|---|---|
| Tray 1 | 60–200 g/m² |
| Tray 2 & Optional Tray | 60–120 g/m² |
Supported Paper Sizes
Standard Sizes
- A4
- A5
- A6
- B5 (JIS)
- B6 (JIS)
- Letter
- Legal
- Executive
- Oficio
- Postcards
- DL Envelope
- C5 Envelope
- B5 Envelope
Custom Sizes
| Tray | Size Range |
|---|---|
| Tray 1 | 76.2 × 127 mm to 215.9 × 355.6 mm |
| Tray 2/3 | 105 × 148 mm to 215.9 × 355.6 mm |
Connectivity
| Feature | Specification |
|---|---|
| USB | Hi-Speed USB 2.0 |
| Ethernet | Gigabit Ethernet (10/100/1000) |
| Wireless | No |
| Wi-Fi Direct | No |
| Network Printing | Yes |
| Mobile Printing | HP ePrint, Apple AirPrint, Mopria |
The M501dn is intended primarily for networked office environments using wired Ethernet.
Consumables
| Item | Specification |
|---|---|
| Standard Toner | HP 87A (CF287A) |
| High-Yield Toner | HP 87X (CF287X) |
| Print Cartridge Count | 1 Black Cartridge |
| Introductory Toner Included | Approx. 6,000 pages |
Toner Yields
| Cartridge | Yield |
|---|---|
| HP 87A | ~9,000 pages |
| HP 87X | ~18,000 pages |
Physical Specifications
| Feature | Specification |
|---|---|
| Width | 418 mm |
| Depth | 376 mm |
| Height | 289 mm |
| Maximum Depth (Doors Open) | 639 mm |
| Weight | 15.4 kg |
Power Requirements
| Feature | Specification |
|---|---|
| Power Supply | 100–127V AC / 220–240V AC |
| Frequency | 50/60 Hz |
| Printing Consumption | 660 W |
| Ready Mode | 6.1 W |
| Sleep Mode | 1.3 W |
| Off Mode | 0.1 W |
