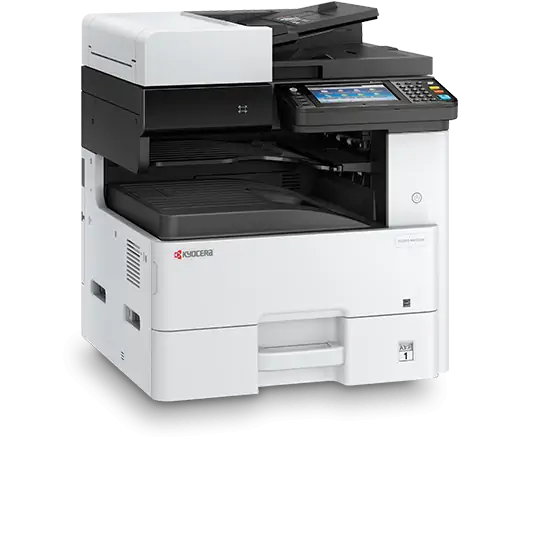

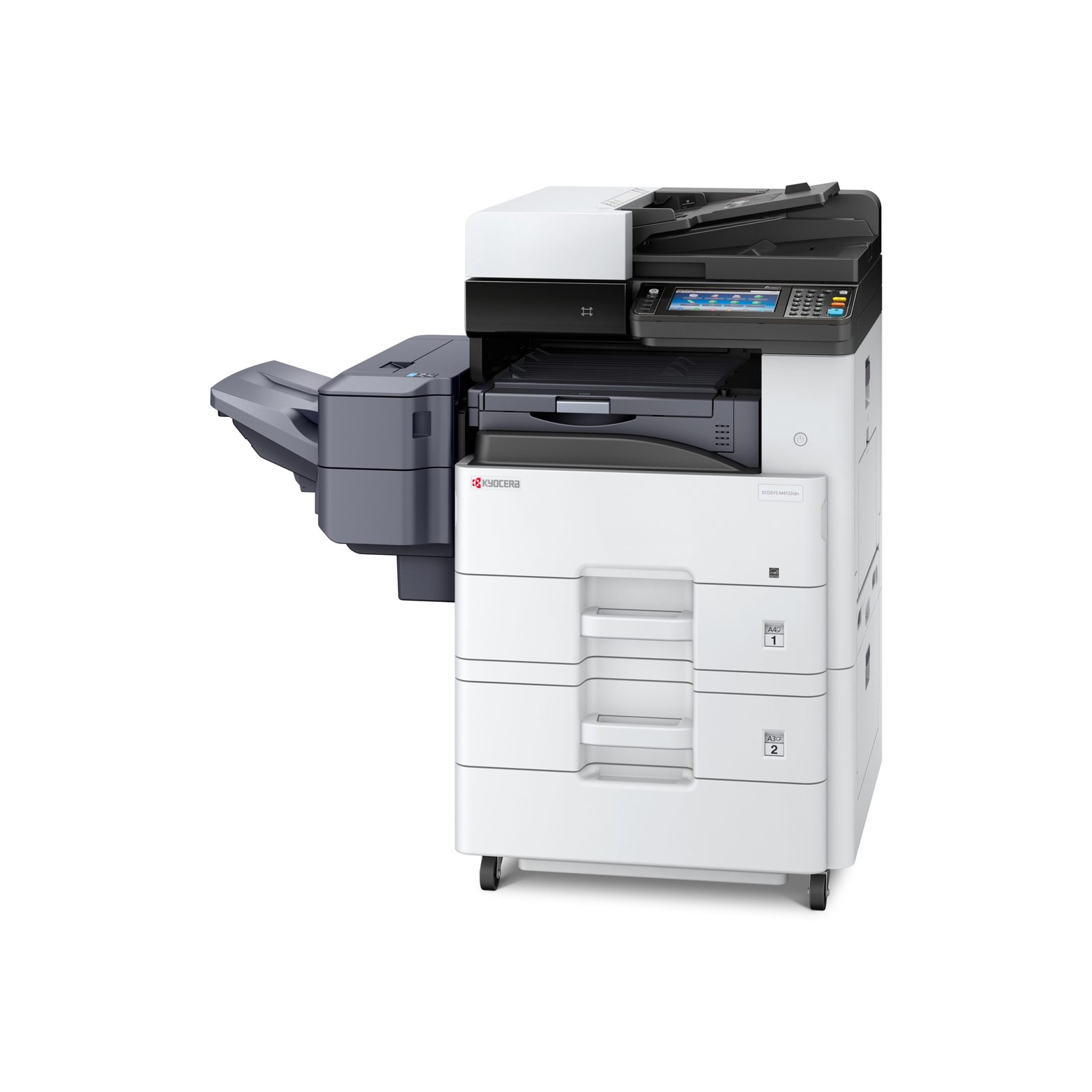

Kyocera ECOSYS M4132idn printer

General

• Type: A3 Monochrome Laser MFP (Print, Copy, Scan, Optional Fax)

• Print Speed: Up to 32 ppm (A4), 17 ppm (A3)

• Warm-Up Time: Approx. 20 seconds

• First Print/Copy Time: Around 5.2 seconds

• Print Resolution: Up to 1200 × 1200 dpi

• Copy/Scan Resolution: Up to 600 × 600 dpi

Hardware & Memory

• Processor: ARM Cortex-A9 dual-core, 1.2 GHz

• Standard Memory: 1 GB RAM (expandable to 3 GB)

• Optional Storage: SSD (32 GB or 128 GB)

Paper Handling

• Standard Input: 500-sheet cassette + 100-sheet multipurpose tray

• Max Input Capacity: Up to 1,600 sheets (with optional trays)

• Paper Weights:

  • Cassette: 60–163 g/m²

  • Multipurpose Tray: 45–256 g/m²

• Duplex Printing: Standard, supports 60–163 g/m²

• Output Capacity: 250 sheets (main tray) + 50 sheets (job separator)

Copy & Scan

• Zoom: 25% – 400% (1% increments)

• Multi-Copy: 1–999 copies

• Scan Speed: Up to 50 ipm (A4, 300 dpi, B&W and color)

• Scan Destinations: Email, FTP, SMB, USB, TWAIN, WSD

• Scan Features: Blank page skip, encrypted transmission, address book, Active Directory support

Connectivity & Print Support

• Interfaces: USB 2.0, USB Host x2, Gigabit LAN

• Optional: Wi-Fi (802.11 b/g/n), Wi-Fi Direct, NFC

• Emulations: PCL 5e/6, KPDL3 (PostScript 3), PRESCRIBE, XPS, PDF Direct Print

• Mobile Printing: Supports AirPrint, Mopria, Kyocera Mobile Print

Security & Display

• Security Features: SSL, IPsec, SNMPv3, Private Print, Encrypted PDF Print

• Control Panel: 7″ Color Touchscreen

• Optional Fax: Super G3, 33.6 kbps, Duplex TX/RX, Broadcast, Network Fax

Power & Acoustics

• Power Consumption:

  • Printing/Copying: 490 W

  • Ready Mode: 70 W

  • Sleep Mode: 0.5 W

• Noise Levels:

  • Operating: 50 dB(A)

  • Standby: 34 dB(A)

Physical Specs

• Dimensions: Approx. 590 × 590 × 688 mm

• Weight: Around 52 kg (may vary by configuration)

Reliability & Warranty

• Monthly Duty Cycle: Up to 100,000 pages

• Drum/Developer Life: Up to 300,000 pages

• Warranty:

  • Standard: 1 year

Eco-Friendly Features

• ECOSYS Technology: Long-life components, low total cost of ownership

• Sustainable Design: Only toner replaced; drum and developer designed to last
