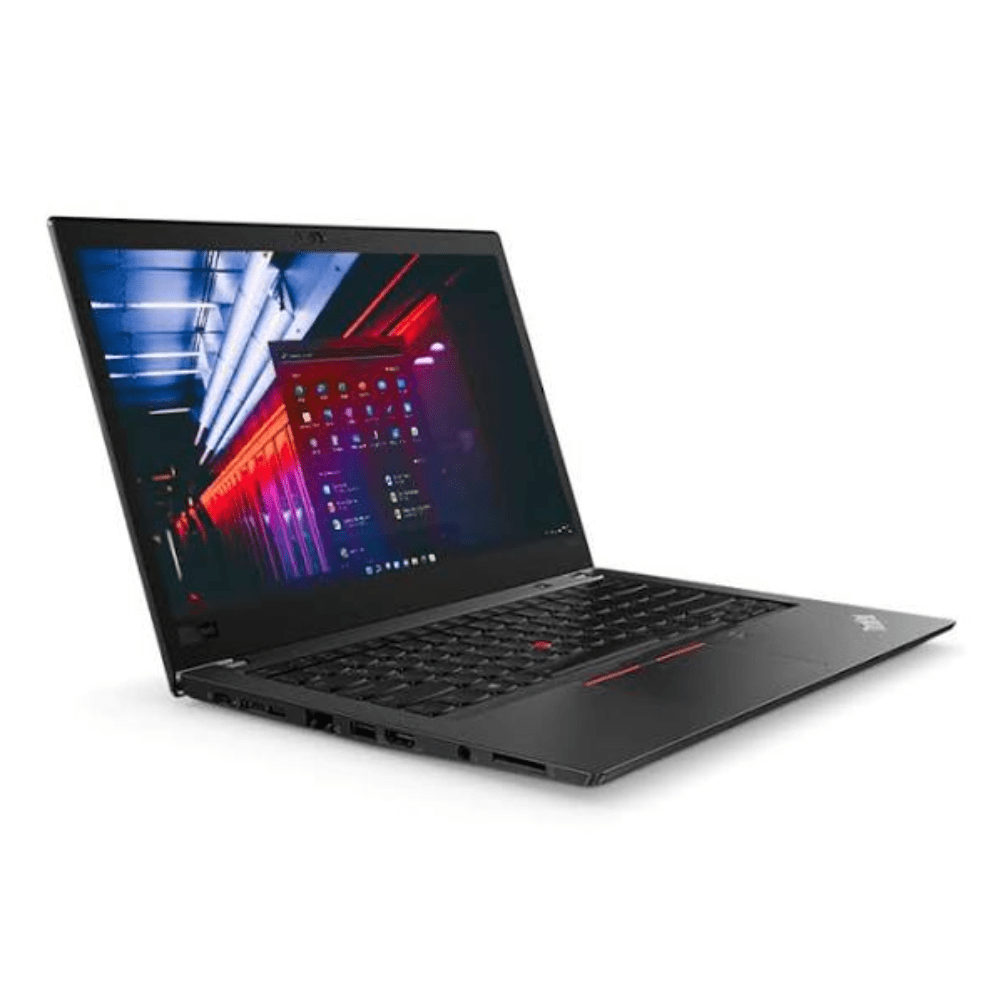

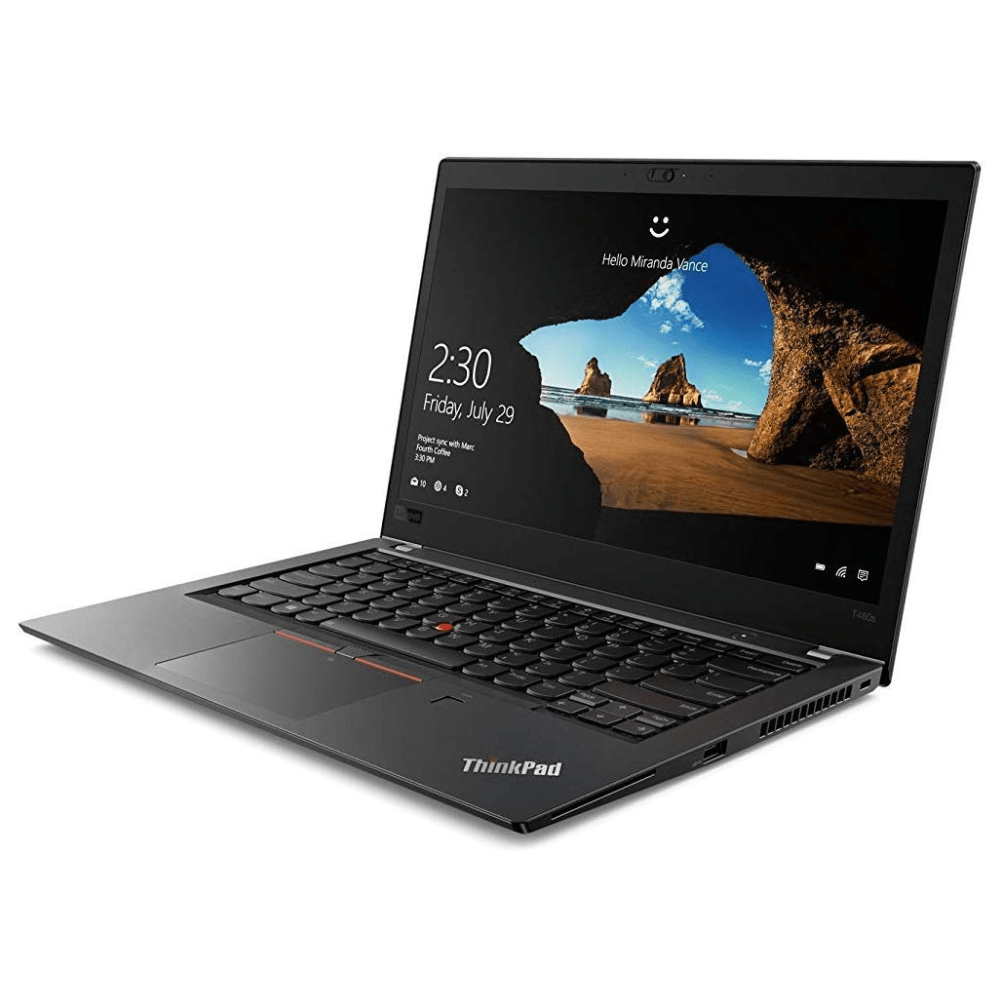

Lenovo ThinkPad T480s Laptop (14″) Intel® Core™ i7-8350U 8 GB DDR4-SDRAM 256 GB SSD

Lenovo ThinkPad T480s Laptop – Intel® Core™ i7-8350U | 8GB RAM | 256GB SSD

General

• Model: Lenovo ThinkPad T480s
• Product Type: Business Ultrabook
• Operating System: Windows 11 Pro
• Color: Black
• Series: ThinkPad T Series

Display

• Screen Size: 14 inches
• Display Resolution: Full HD (1920 × 1080)
• Panel Type: IPS (selected models) or TN (base models)
• Brightness: Up to 250–300 nits (configuration dependent)
• Aspect Ratio: 16:9
• Anti-Glare: Yes
• Touchscreen: Optional on selected configurations

Processor

• Processor: Intel® Core™ i7-8350U
• Generation: 8th Generation Intel Core
• CPU Cores: 4
• Threads: 8
• Base Clock Speed: 1.70 GHz
• Max Turbo Frequency: Up to 3.60 GHz
• Cache: 6 MB Intel Smart Cache
• TDP: 15W

Graphics

• Graphics Processor: Intel® UHD Graphics 620
• Graphics Type: Integrated
• Supports: External 4K displays via HDMI and USB-C/Thunderbolt 3

Memory

• Installed RAM: 8 GB DDR4-SDRAM
• Memory Type: DDR4 2400 MHz
• Memory Configuration: 8 GB onboard
• Expansion: 1 × SO-DIMM slot
• Maximum Memory: Up to 24 GB (8 GB onboard + 16 GB SO-DIMM)

Storage

• Storage Capacity: 256 GB SSD
• Storage Type: M.2 PCIe NVMe Solid State Drive
• Expansion: Supports M.2 PCIe SSD upgrades

Audio

• Dolby® Audio Premium
• Stereo Speakers
• Dual Array Microphones
• 3.5 mm Headphone/Microphone Combo Jack

Camera

• HD 720p Webcam
• Dual Microphones
• Optional IR Camera for Windows Hello facial recognition

Connectivity

• Wi-Fi: Intel Dual Band Wireless-AC 8265 (802.11ac)
• Bluetooth: Bluetooth 4.2
• Gigabit Ethernet: Via included Ethernet extension adapter (RJ-45)

Ports

• 2 × USB 3.1 Gen 1 Type-A
• 2 × USB-C
  • 1 × USB-C 3.1 Gen 2
  • 1 × Thunderbolt™ 3
• 1 × HDMI 1.4
• 1 × 3.5 mm Audio Combo Jack
• 1 × microSD Card Reader
• 1 × Ethernet Extension Connector
• Side Docking Connector

Keyboard & Input

• Spill-resistant ThinkPad Keyboard
• White LED Backlit Keyboard (selected models)
• Multi-touch Precision Touchpad
• TrackPoint Pointing Stick
• Dedicated Function Keys

Security

• TPM 2.0 Security Chip
• Fingerprint Reader (selected models)
• Kensington Lock Slot
• Smart Card Reader (optional)
• Optional IR Camera with Windows Hello
• ThinkShutter Privacy Camera Cover (selected models)

Battery

• Battery Type: Integrated 57Wh Lithium-Ion
• Rapid Charge: Charges up to 80% in approximately 1 hour with a 65W USB-C charger

Physical Specifications

• Dimensions (W × D × H): 331 × 226.8 × 18.5 mm
• Weight: Starting at approximately 1.32 kg
• Chassis: Magnesium alloy with carbon-fiber reinforced lid
• MIL-STD-810G: Tested for durability and reliability
