| Spec | Detail |
|---|---|
| Model | ME-30000-GTU 3/3 |
| Capacity | 30 kVA / ~27 kW (at nominal power factor) |
| Topology | Online double-conversion |
| Phase | 3-phase input / 3-phase output (3/3) |
| Input Voltage Nominal | 380 / 400 / 415 VAC (3Ph + N + PE) |
| Input Voltage Range | • Full load: ~305-478 VAC • At 50% load: ~208-478 VAC |
| Input Frequency Range | 40-70 Hz (auto-sensing, accommodates generator outputs) |
| Input Power Factor | ≥ 0.99 |
| Output Voltage | 380 / 400 / 415 VAC (3Ph + N + PE) |
| Output Regulation | ±1% voltage regulation |
| Output Power Factor | ~0.9 |
| Output Frequency | • Line/Battery: ~50 Hz or 60 Hz ± ~0.1% |
| Waveform | Pure sine wave |
| Harmonic Distortion (THDv) | • ≤ 2% (linear load) • ≤ 5% (non-linear load) |
| Transfer Time | 0 ms (AC to battery mode), inverter-bypass transition effectively 0 ms |
| Overload Capability | • Up to 110% load: 60 mins • Up to 125% load: 10 mins • Up to 150% load: 1 min • Above 150%: immediate bypass or shutdown |
| Efficiency | • AC Mode: up to ~94.5% • Battery Mode: up to ~93.5% |
| Battery Configuration | • Standard: ~16-20 units (12 V batteries) • Long-run optional: ~30-50 units • Configurable battery charging current up to ~20 A |
| Display / Interface | 2.4-inch TFT LCD standard (optional 7-inch LCD) for status/monitoring; communication via USB, RS-232, RS-485; optional SNMP / relay cards; battery temperature sensor optional |
| Physical Size & Weight | • Standard unit dimensions: ~ 250 × 900 × 868 mm • Long-run unit (shorter depth): ~ 250 × 580 × 655 mm • Net weight: ~ 186 kg (standard) |
| Operating Environment | • Temperature: 0-40 °C • Humidity: 0-95% RH, non-condensing • Altitude: Typically below ~1,500 m, with derating above that • Noise: < 58 dB at 1 m |
| Protection & Safety | Overload, short-circuit, overheat, battery over-/under-voltage, fan fault alarms; generator compatibility; various safety/industrial standards typically met |
| Applications | Enterprise & industrial environments, data centers, telecommunications infrastructure, critical loads where clean power and high uptime are essential |
New

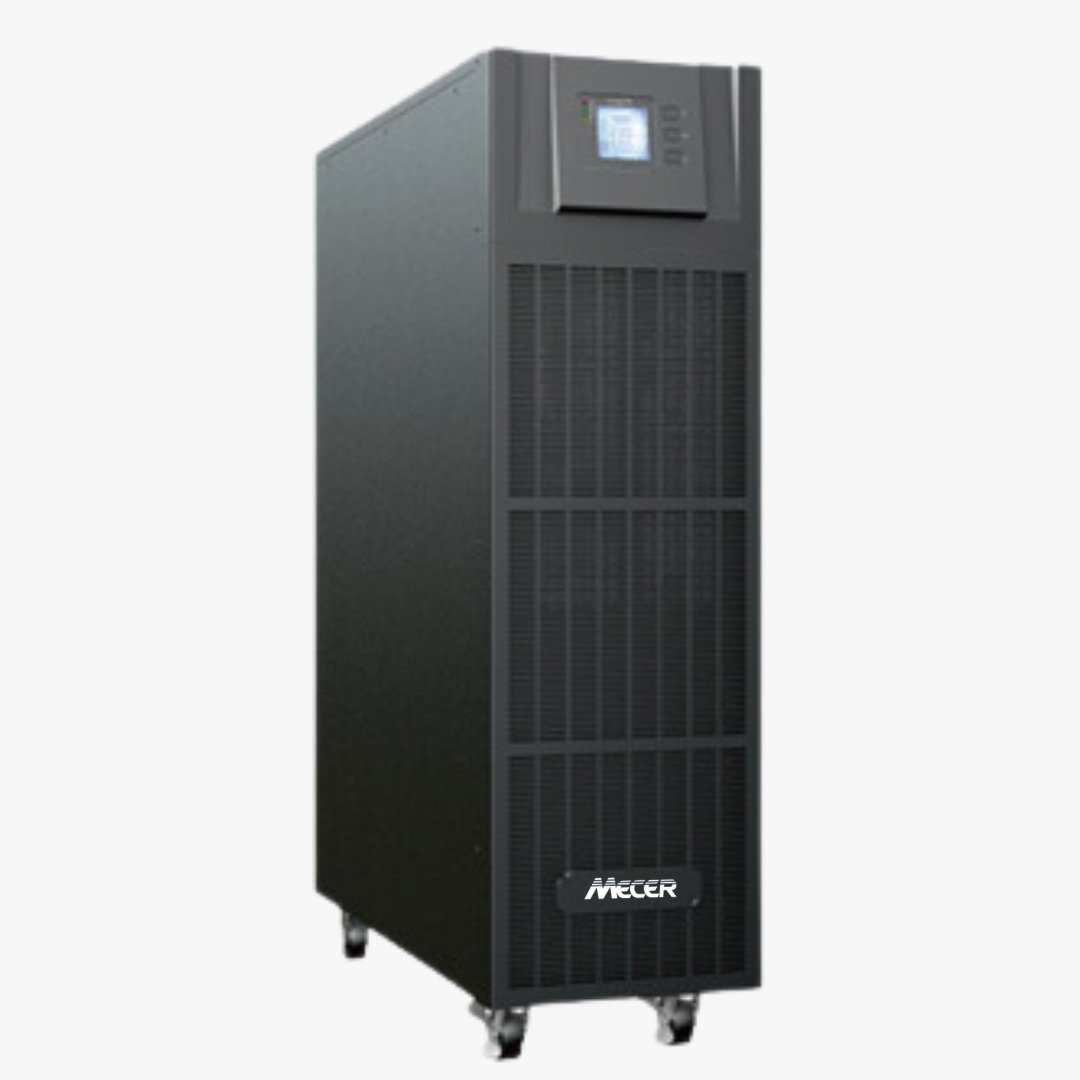

MECER 3/3 30000VA 30KVA ONLINE UPS
-
Capacity: 30kVA / 27kW
-
UPS Type: Online double-conversion
-
Phase: 3-Phase input & output (380/400/415V)
-
Output Power Factor: 0.9
-
Input Power Factor: ≥0.99
-
Output Waveform: Pure sine wave
-
Transfer Time: 0ms (seamless switching)
-
Efficiency: Up to 94.5%
-
Overload Protection: Supports up to 150%
-
Battery: Configurable bank, long-run support
-
Display & Communication: TFT LCD, USB, RS-232, RS-485, optional SNMP
-
Generator Compatible: Yes
-
Dimensions: ~250 × 900 × 868 mm
-
Weight: ~186 kg
-
Applications: Data centers, telecoms, industrial & critical systems
KShs780,000
- Prices are subject to change without notice!
- All Prices are VAT Exclusive
