Capacity: 40 kVA
-
Phase: 3-Phase input / 3-Phase output (3/3)
-
Input Voltage Range: ~110-300 VAC, with extended low-range support (e.g. 55-150 VAC at light loads)
-
Input Power Factor: 0.99
-
Output Power Factor: 0.9
-
Operating Modes: Online double-conversion, 50/60 Hz converter mode, ECO mode for energy saving
-
Programmable Power Management Outlets: Can shed non-critical loads to extend runtime
-
Emergency Power Off (EPO): Yes
-
Surge Protection: High surge immunity (up to ~7 kV, 13 kA; 1300 J)
-
Generator Compatibility: Supported
-
Protection: High overload capacity and enhanced short-circuit protection
-
Communication Interfaces: SNMP, USB, RS-232
-
Battery Charger: 3-stage smart charging system
-
Extended Runtime Option: Supports long-run battery configuration with charger capacity expansion (up to ~8A)
-
Output Voltage Options: Selectable 200-240 VAC or 100-127 VAC, configurable via LCD

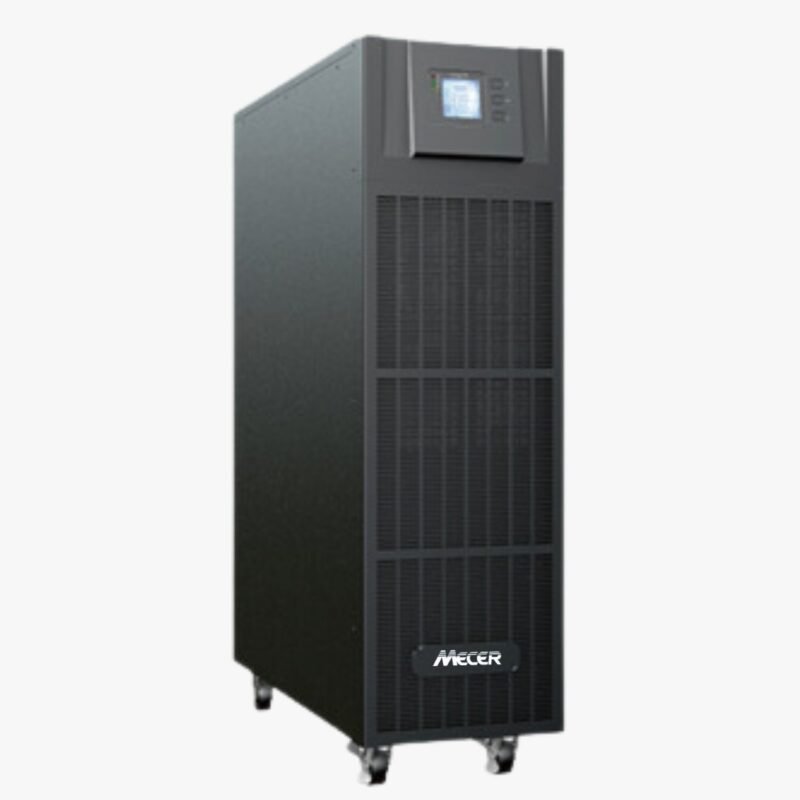

Mecer 40 kVA 3/3 Online UPS
-
-
Capacity: 40kVA
-
UPS Type: Online double-conversion
-
Phase: 3-Phase input & output (3/3)
-
Input Power Factor: 0.99
-
Output Power Factor: 0.9
-
Input Voltage Range: 110–300 VAC (extended low range supported)
-
Output Voltage: Selectable 200–240V or 100–127V
-
Transfer Time: 0ms seamless switching
-
Efficiency: High, with ECO mode for energy saving
-
Protection: Overload, short-circuit, surge immunity (up to 7kV/13kA)
-
Battery: 3-stage smart charging, expandable charger for long-run support
-
Interfaces: LCD display, USB, RS-232, SNMP support
-
Extra Features: Generator compatible, programmable outlets, Emergency Power Off (EPO)
-
Applications: Data centers, telecoms, industrial & mission-critical systems
-
KShs1,036,000
- Prices are subject to change without notice!
- All Prices are VAT Exclusive
