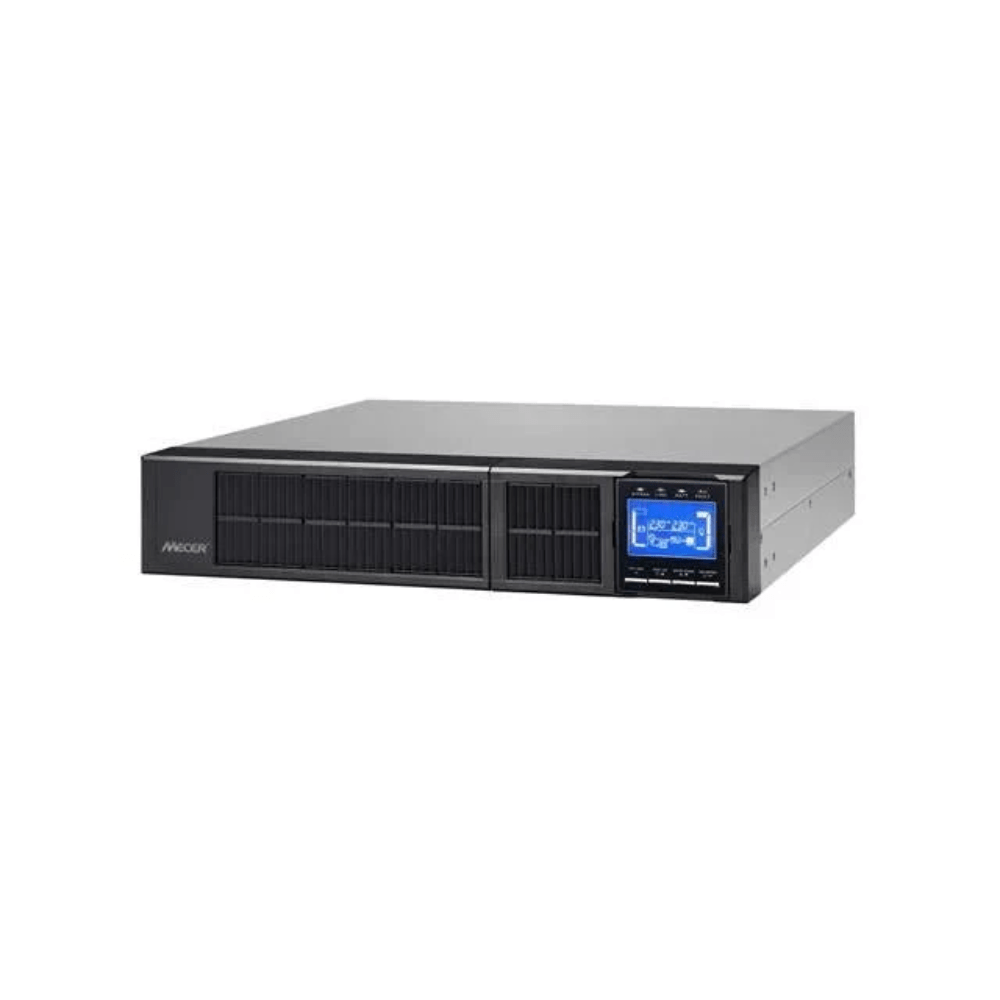

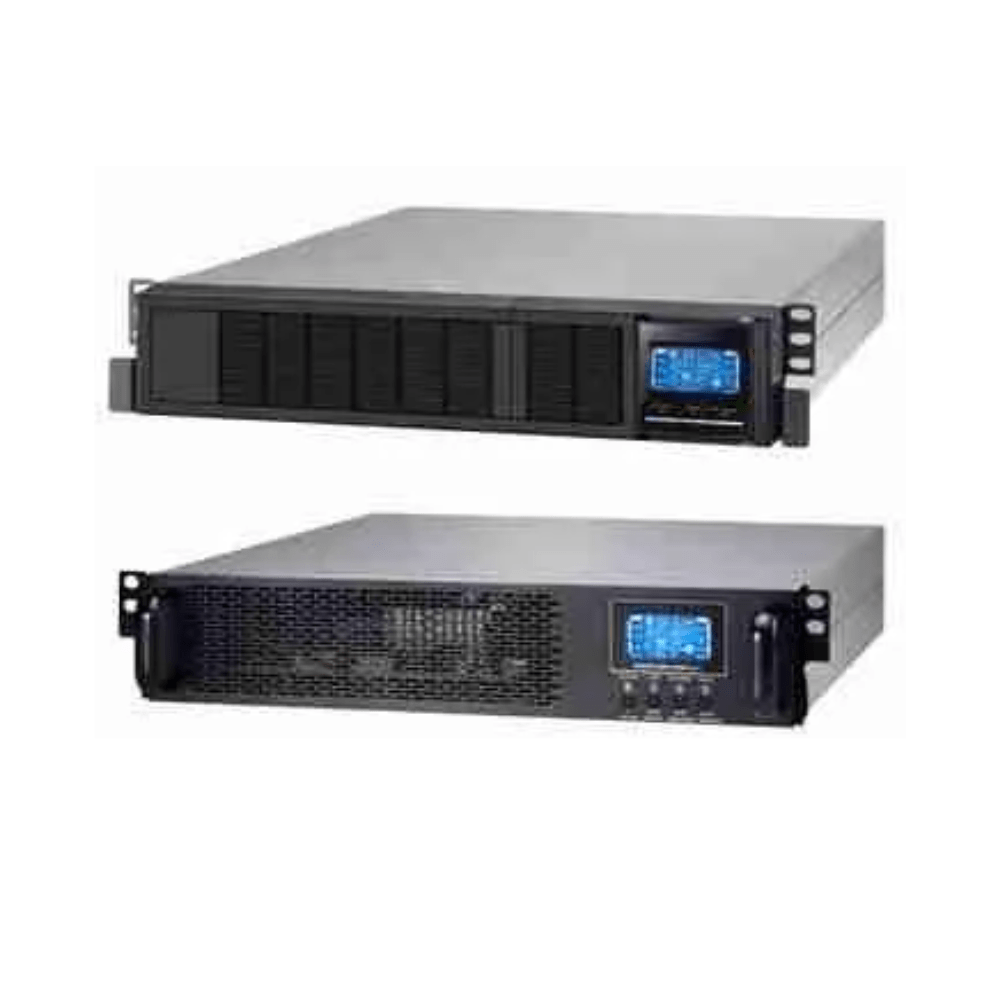

Mecer (ME-3000-WPRU) 3000VA (3KVA) (2700W) LCD Smart Online Rackmount UPS

General

• Model: Mecer ME-3000-WPRU

• Type: True Online Double-Conversion UPS

• Capacity: 3000VA / 2700W

• Form Factor: Rackmount (2U)

• Color: Black

Input

• Input Voltage Range: 110 – 300 VAC

• Input Frequency Range: 40 – 70 Hz (auto-sensing)

• Input Power Factor: ≥ 0.99

Output

• Output Voltage: Selectable 200 / 208 / 220 / 230 / 240 VAC

• Output Voltage Regulation: ±1%

• Output Frequency: 50 Hz ±0.25 Hz / 60 Hz ±0.3 Hz

• Waveform: Pure sine wave

• Transfer Time: Zero (no interruption)

• Harmonic Distortion: ≤3% (linear load), ≤6% (non-linear load)

Battery & Charging

• Battery Type: Sealed Lead-Acid (12V / 9Ah)

• Number of Batteries: 6

• Charging Time: ~4 hours to 90% capacity

• Charging Voltage: ~82.1 VDC

Efficiency

• AC Mode Efficiency: Up to 90%

• Battery Mode Efficiency: Up to 88%

Display & Monitoring

• LCD Display: Shows input/output voltage, load level, battery status, and alarms

• Audible Alarms: Battery mode, low battery, overload, and fault alerts

• Communication Ports: USB, RS-232

• Optional Management: SNMP card support

Protection & Features

• Online double-conversion power protection

• Surge and overload protection

• Generator compatible

• ECO mode for improved energy efficiency

• Hot-swappable battery support

Physical & Environmental

• Dimensions: Approx. 630 × 483 × 88 mm

• Weight: Approx. 29.3 kg

• Operating Temperature: 0 – 40°C

• Noise Level: < 58 dB
