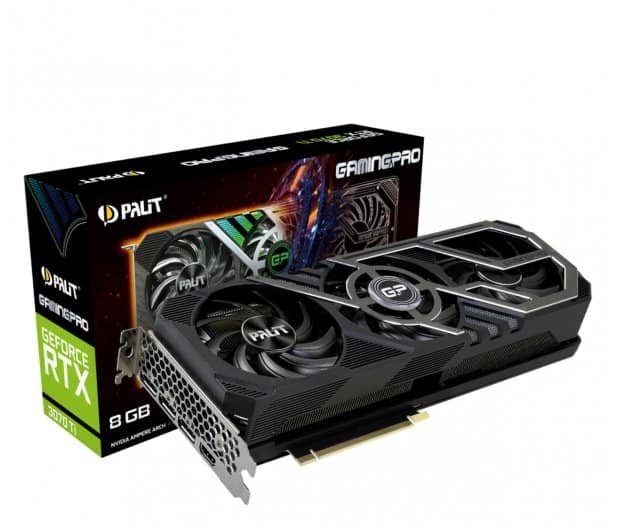

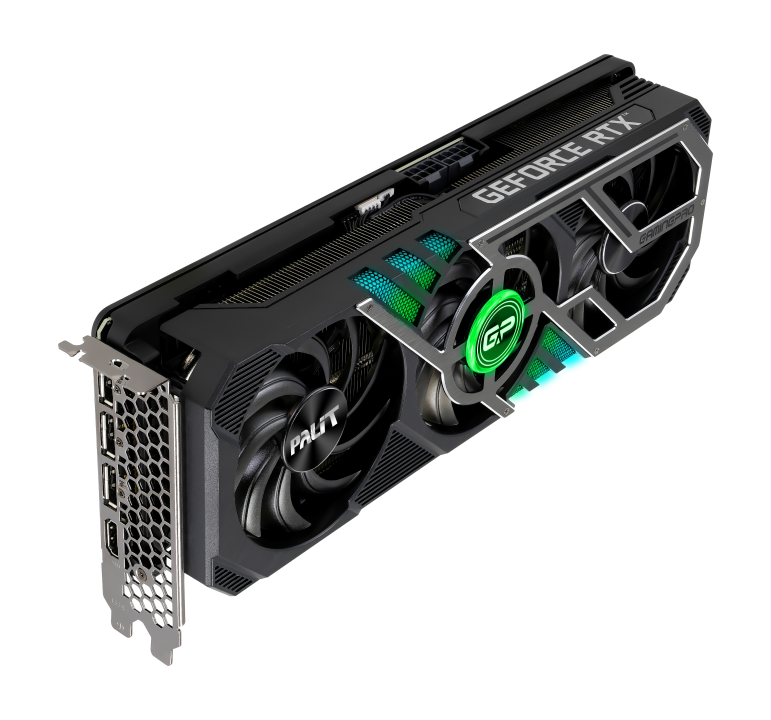

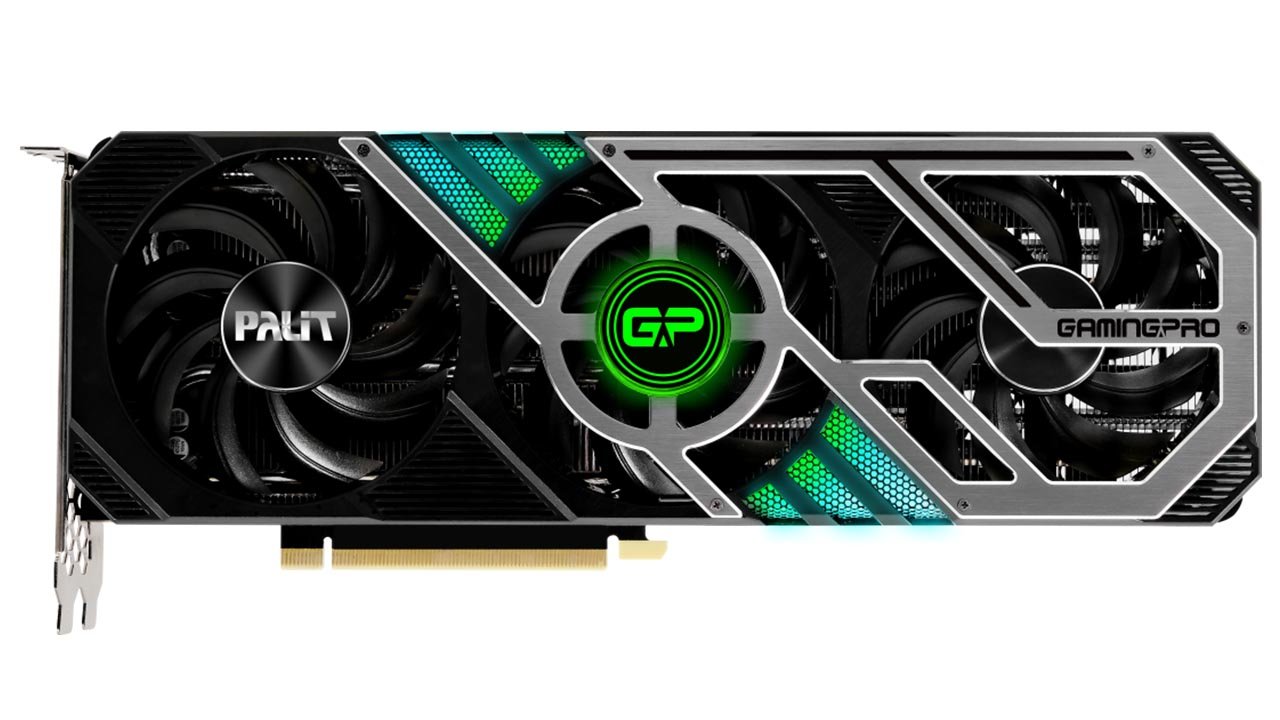

Palit GeForce RTX 3070 Ti GamingPro

GPU Architecture

• GPU Model: NVIDIA GA104-400-A1

• Architecture: Ampere

• Process Technology: 8nm (Samsung)

• CUDA Cores: 6144

• Base Clock: 1575 MHz

• Boost Clock: 1770 MHz

• Memory: 8 GB GDDR6X

• Memory Bus: 256-bit

• Memory Speed: 19 Gbps

• Memory Bandwidth: 608 GB/s

Power & Connectivity

• TDP: 290 W

• Recommended PSU: 700 W

• Power Connectors: 2 × 8-pin PCIe

• Bus Interface: PCIe 4.0 x16

• Outputs:

  • 1 × HDMI 2.1

  • 3 × DisplayPort 1.4a

Dimensions & Slot

• Length: 294 mm

• Width: 112 mm

• Height: 60 mm

• Slot Width: 2.7-slot

Features & Cooling

• Cooling System: Triple-fan design with ARGB lighting

• Semi-passive Fan Mode: Fans operate only under load

• DrMOS: High-efficiency power delivery

• Honeycomb Bracket: Enhanced airflow

• TurboFan Blade 3.0: Improved fan stability

• ARGB Lighting: Customizable lighting effects

Performance Highlights

• Ray Tracing: 2nd Gen RT Cores

• AI Features: 3rd Gen Tensor Cores, DLSS

• VR Ready: Yes

• Max Resolution: 7680 × 4320 (8K)

• Multi-Monitor Support: Up to 4 displays
