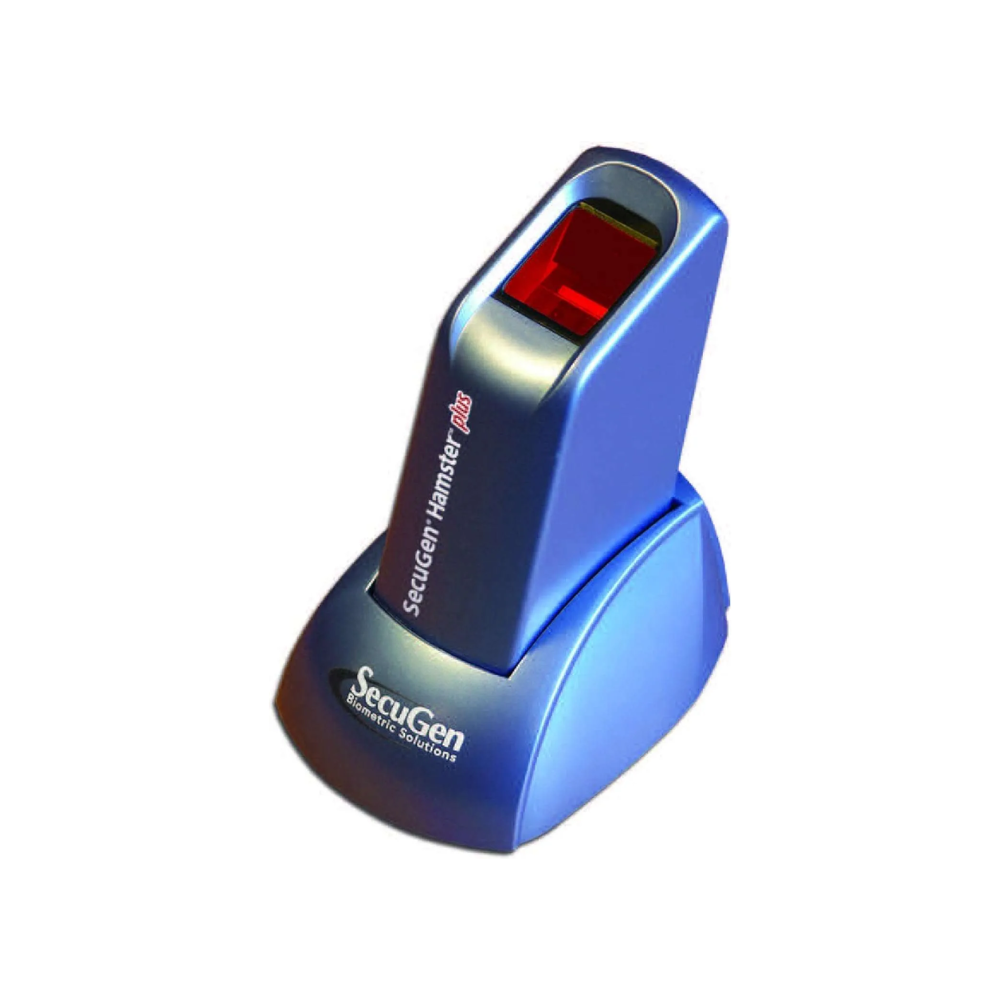

SecuGen Hamster Plus Fingerprint Scanner

Model / Part Number: Hamster Plus (HSDU03P)

Sensor Type: Optical fingerprint sensor, SecuGen SDU03P, SEIR technology

Image Resolution: 500 DPI

Image Size: 260 × 300 pixels

Platen Size: 14.6 mm × 17.9 mm

Effective Sensing Area: 13.2 mm × 15.2 mm

Gray Scale / Image Depth: 256 levels (8-bit)

Light Source: LED lighting

Capture Speed: ~0.2-0.5 seconds (with Smart Capture)

USB Interface: USB 1.1 Full-Speed & USB 2.0 Hi-Speed

Power / Supply: 5 V DC (via USB), max current ~140 mA

Dimensions: With stand: 53 × 73 × 84 mm; Without stand: 27 × 40 × 73 mm

Weight: With stand: ~165 g; Without stand: ~100 g

Cable Length: ~1500 mm USB cable

Operating Temperature: –20 °C to +65 °C

Operating Humidity: Up to 90% RH (non-condensing)

Standards / Compliance: INCITS 378, ISO/IEC 19794-2 & ISO/IEC 19794-4

Certifications: FCC, CE, KC, RoHS, WHQL

Additional Features: Auto-On™ (finger detection), Smart Capture™ (adaptive image adjustments), Device Recognition™, latent-print rejection, template encryption with proprietary format

Supported OS: Windows 7 / 8.1 / 10 / 11; Windows Server editions; Android 3.1+; Linux

Warranty: 1 year limited warranty
