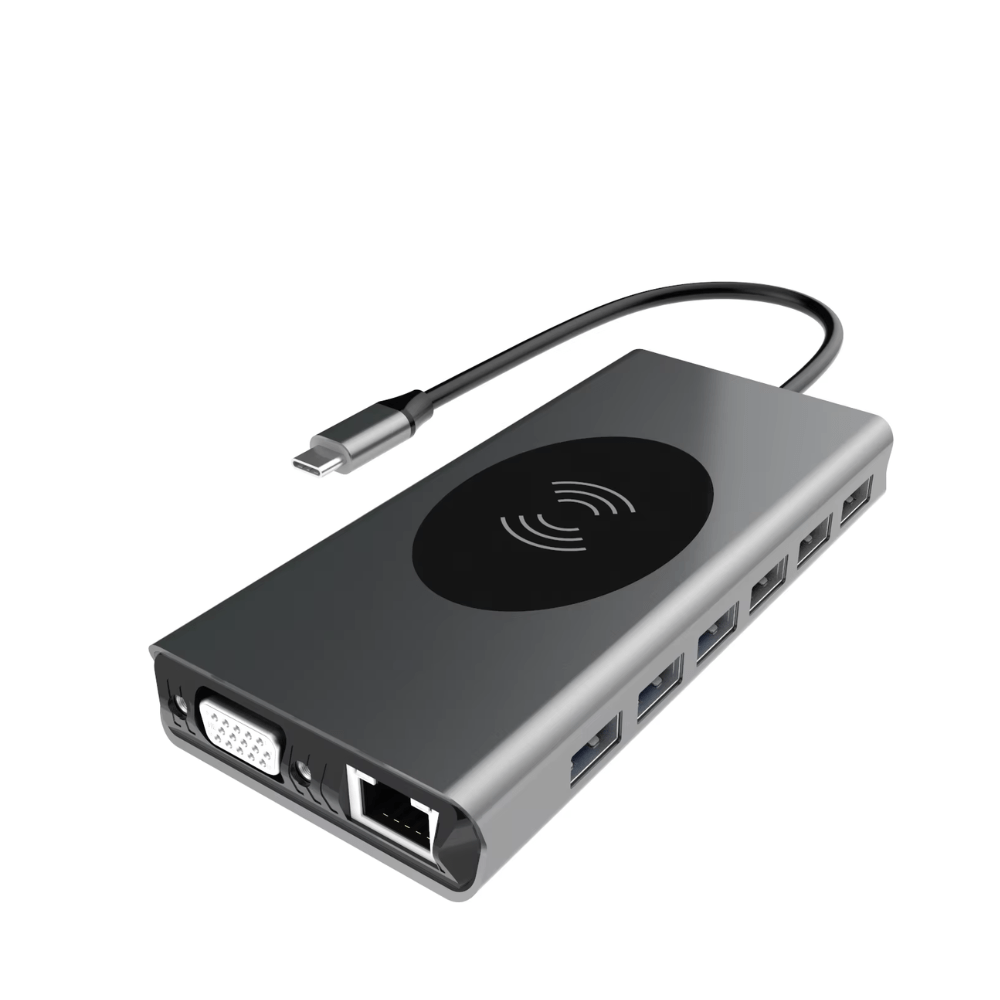

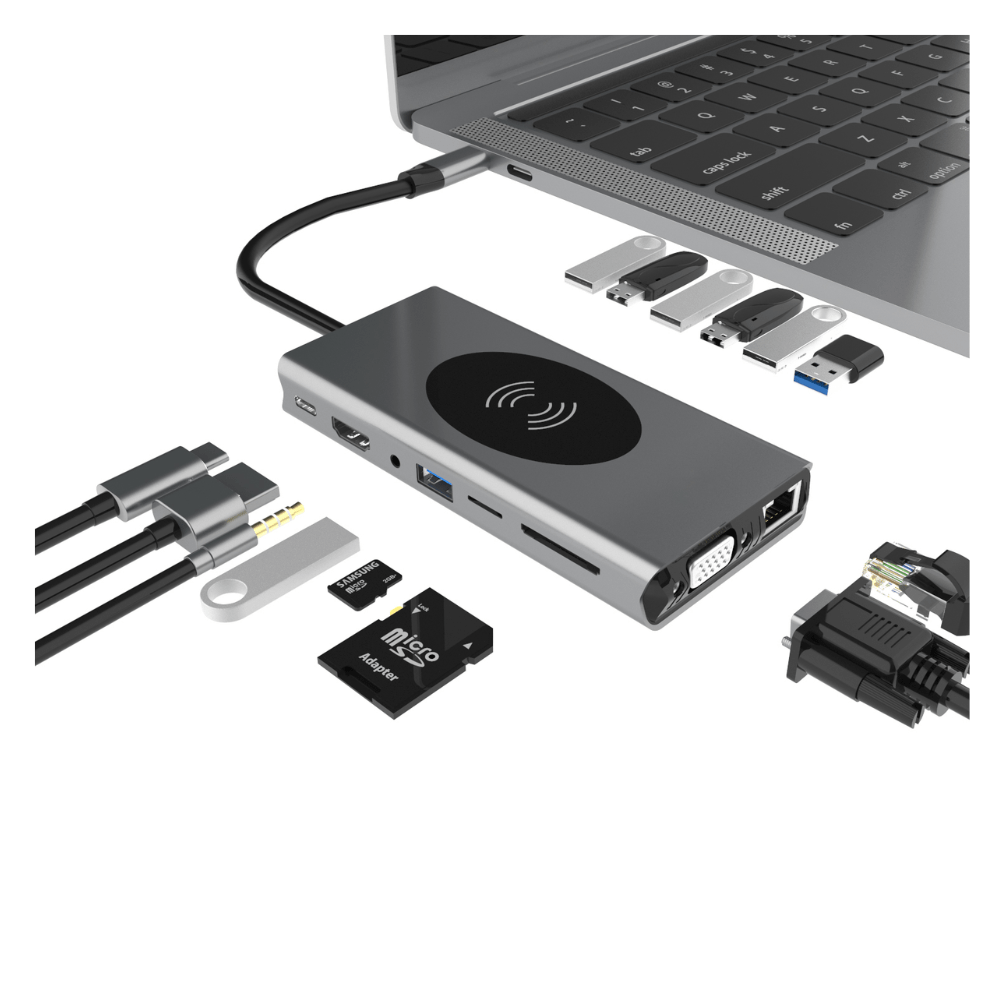

Ports & Interfaces (15-in-1)
- 1 × USB-C (Host connection to laptop)
- 1 × USB-C Power Delivery (PD 3.0)
- 1 × USB-C Data (up to 10Gbps)
- 1 × USB-A 3.1 (10Gbps)
- 2 × USB-A 3.0 (5Gbps)
- 2 × USB-A 2.0 (480Mbps)
- 2 × HDMI ports
- 1 × DisplayPort (DP)
- 1 × VGA port
- 1 × RJ45 Ethernet port
- 1 × SD card slot + 1 × microSD (TF) slot
- 1 × 3.5mm audio/mic combo jack
Video & Display
- HDMI Output:
- Up to 4K (3840×2160) @60Hz (DP 1.4 source)
- Up to 4K @30Hz (DP 1.2 source)
- DisplayPort: Up to 4K @60Hz
- VGA: Up to 1080p @60Hz
- Multi-display: Supports dual/triple displays (OS dependent)
Power Delivery
- USB-C PD: Up to 100W input charging (pass-through to laptop)
- Supports simultaneous charging + data + display
Data Transfer
- USB-C / USB-A 3.1: up to 10Gbps
- USB-A 3.0: up to 5Gbps
- USB-A 2.0: up to 480Mbps
- Card Reader: up to ~104MB/s read speeds
Networking
- Ethernet: Gigabit LAN (10/100/1000 Mbps)
Audio
- 3.5mm jack: Headphone + microphone combo
Compatibility
- Works with USB-C / Thunderbolt 3/4 laptops
- Supports Windows, macOS, Linux
- Requires USB-C with DisplayPort Alt Mode for video output
Build & Design
- Material: Aluminum alloy / ABS (varies by brand)
- Design: Compact, portable docking-style hub
- Use Case: Workstations, multi-monitor setups, office productivity
