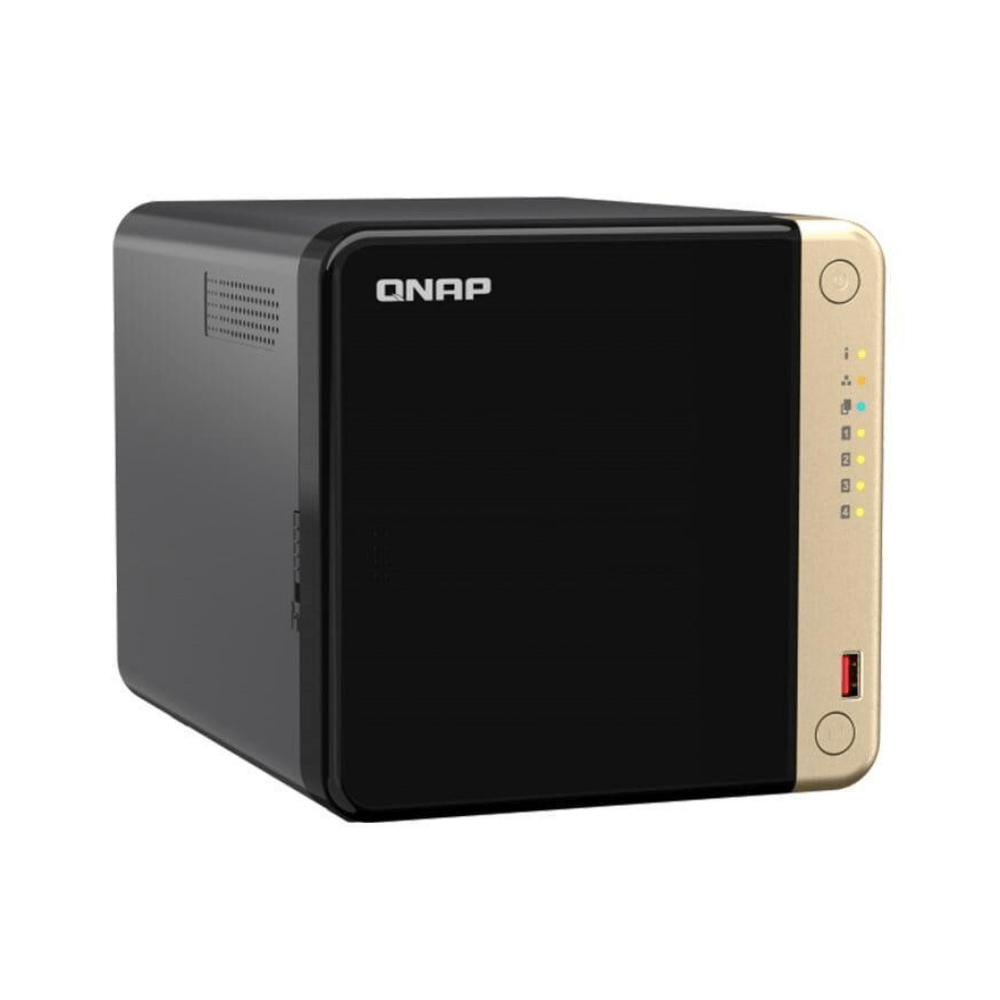

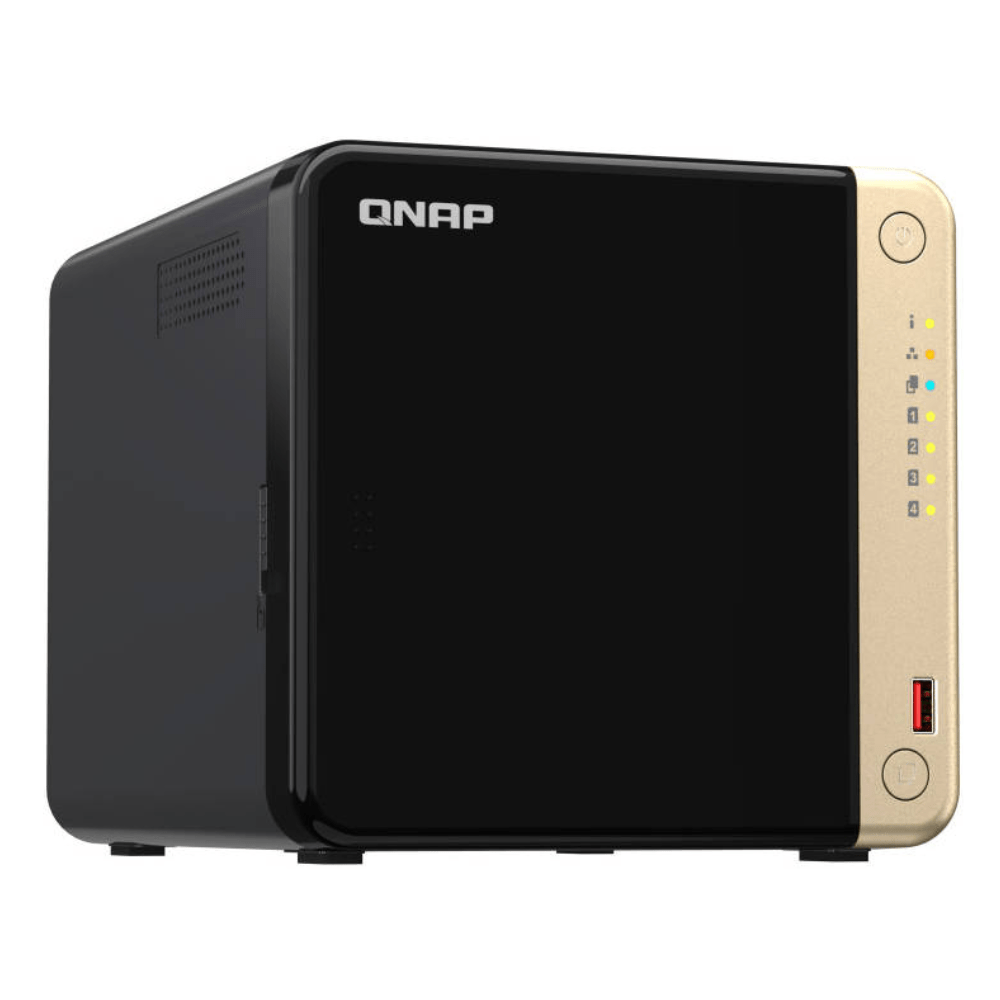

QNAP TS-464 4-BAY NAS Intel® Celeron® N5095 8GB RAM , 2.5GbE(2), M.2(2), PCIe

QNAP TS-464 4-Bay NAS (8GB RAM) – Detailed Specifications

General

• Model: QNAP TS-464-8G
• Product Type: 4-Bay Desktop Network Attached Storage (NAS)
• Form Factor: Tower/Desktop
• Operating System: QTS 5.x (supports QuTS hero on compatible configurations)
• Drive Bays: 4 × 3.5″/2.5″ SATA III (6 Gb/s)
• Hot-Swappable Drive Bays: Yes (M.2 SSDs are not hot-swappable)
• Ideal For: Small businesses, home offices, multimedia streaming, virtualization, surveillance, backup, and private cloud storage.

Processor

• Processor: Intel® Celeron® N5095
• CPU Cores / Threads: 4 Cores / 4 Threads
• Base Frequency: 2.0 GHz
• Burst Frequency: Up to 2.9 GHz
• Architecture: 64-bit x86
• Graphics: Intel® UHD Graphics
• Hardware Encryption: Intel AES-NI
• Hardware Video Transcoding: Supported.

Memory

• Installed RAM: 8 GB DDR4 SODIMM
• Memory Slots: 2 × DDR4 SODIMM
• Maximum Memory: 16 GB (2 × 8 GB)
• Flash Memory: 4 GB eMMC with dual-boot OS protection.

Storage

• Drive Bays: 4 × SATA III (6 Gb/s)
• Supported Drives:
  • 3.5-inch SATA HDD
  • 2.5-inch SATA HDD
  • 2.5-inch SATA SSD
• M.2 SSD Slots: 2 × M.2 2280 PCIe Gen 3 ×1
• SSD Cache Acceleration: Supported
• Qtier Auto-Tiering: Supported.

RAID Support

• RAID 0
• RAID 1
• RAID 5
• RAID 6
• RAID 10
• JBOD
• Single Disk.

Network

• LAN Ports: 2 × 2.5 Gigabit Ethernet (RJ-45)
• Supported Speeds: 10M / 100M / 1G / 2.5G
• Port Trunking: Supported (combined throughput and redundancy)
• Wake-on-LAN: Supported
• Jumbo Frames: Supported.

Expansion

• PCIe Slot: 1 × PCIe Gen 3 ×2
• Supports optional:
  • 5GbE/10GbE network adapters
  • QM2 expansion cards
  • M.2 SSD expansion
  • Edge TPU AI accelerator.

USB Ports

• 2 × USB 3.2 Gen 2 Type-A (10 Gbps)
• 2 × USB 2.0 Type-A.

HDMI

• 1 × HDMI 2.1
• Supports up to 4K (4096 × 2160) at 60 Hz
• Direct multimedia playback
• HybridDesk Station support.

File Systems

Internal

• EXT4

External

• NTFS
• FAT32
• exFAT (license/region dependent)
• HFS+
• EXT3
• EXT4.

Software Features

• QTS Operating System
• Hybrid Backup Sync (HBS 3)
• Snapshot Protection
• myQNAPcloud
• File Station
• Qsync
• Multimedia Console
• Container Station
• Virtualization Station
• Surveillance Station / QVR Elite
• Plex Media Server support (software installation)
• DLNA Media Server.

Security

• AES-256 Hardware Encryption
• Two-Factor Authentication
• Snapshot Protection
• IP Blocking
• Security Counselor
• Malware Remover
• SSL/TLS Encryption.

Multimedia

• 4K HDMI Output
• Hardware Video Transcoding
• Intel UHD Graphics
• Music Station
• Video Station
• Photo Management
• Plex Media Server compatibility.

Cooling

• Cooling Fan: 120 mm smart fan
• System Buzzer: Yes.

Power

• Power Adapter: 90W
• Input Voltage: 100–240V AC
• Typical Operating Power Consumption: Approximately 40.5W
• Disk Standby Power Consumption: Approximately 21.6W.

Physical Specifications

• Dimensions (H × W × D): 165.3 × 169 × 226.5 mm
• Net Weight: Approximately 2.26 kg (without drives)
• Color: Black.
