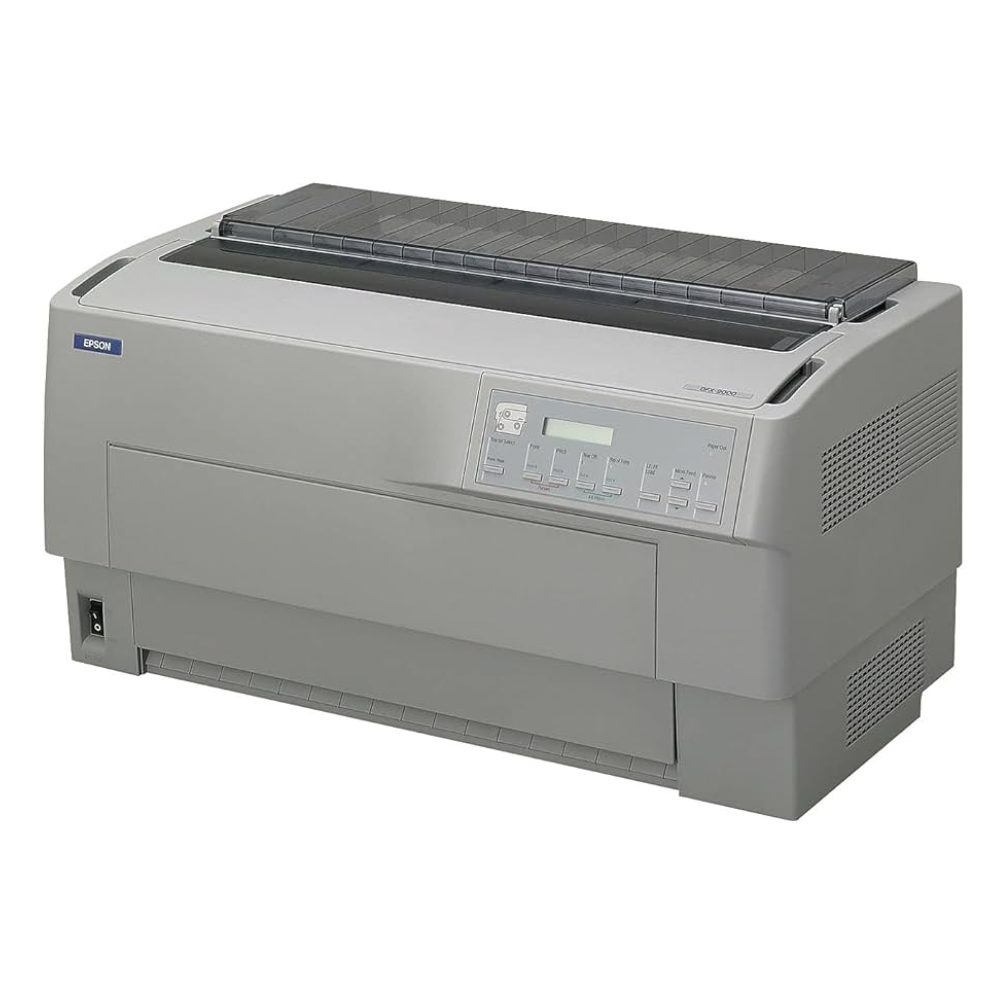

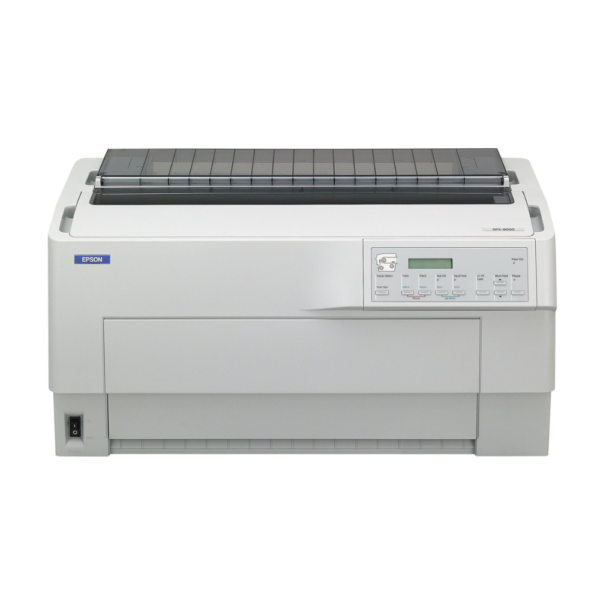

Epson DFX-9000 9-PIN Dot Matrix Wide Printer

Printing Technology

• Printing Method: Impact dot matrix
• Pin Configuration: 9-pin (36 needles, 4×9)
• Columns: 136 (wide format)

Performance

• Max Speed:
  • Up to 1550 cps (10 cpi, High-Speed Draft)
  • 1450 cps (12 cpi)
  • 1320 cps (Draft)
  • 330 cps (NLQ)
• Print Resolution: 240 × 144 dpi
• Copies: Up to 10-part forms (1 original + 9 copies)

Connectivity

• Interfaces:
  • USB 2.0
  • Parallel (bidirectional)
  • Serial (RS-232)
  • Optional Ethernet (network)

Paper Handling

• Feed Type:
  • Continuous paper (front & rear tractors)
  • Rear output
• Media Supported:
  • Continuous paper (single/multi-layer)
  • Cut sheets
  • Labels
• Special Feature: Dual tractor system for flexible paper loading

Memory & Durability

• Memory: 128 KB
• Ribbon Yield: ~15 million characters
• Print Head Life: ~200 million strokes/wire
• MTBF: ~20,000 hours
• Print Volume: ~133 million lines

General Specs

• Power Consumption:
  • 185W (operation)
  • 75W (standby)
• Noise Level: ~58 dB
• Dimensions: 700 × 378 × 363 mm
• Weight: ~34 kg

Compatibility

• Supported OS:
  • Windows (XP, 7, 8, 2000, 98)
• Software: Epson Status Monitor
