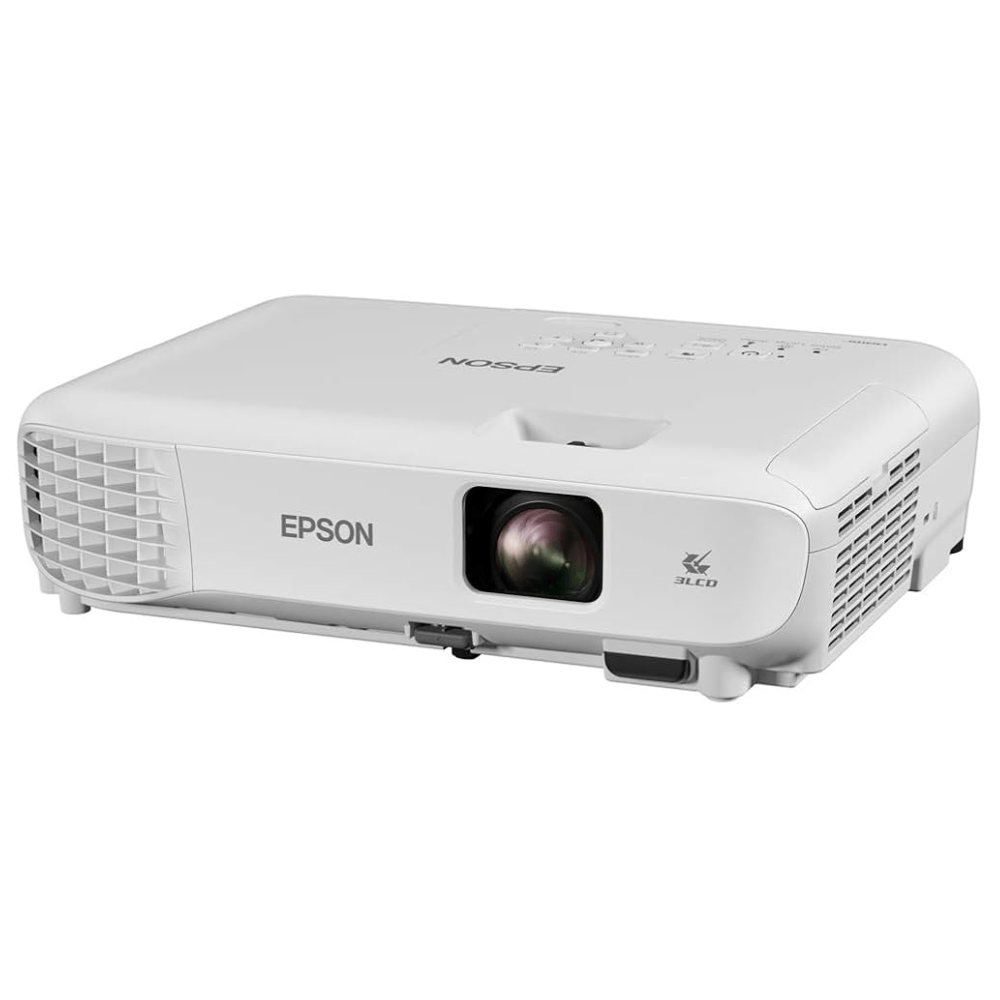

Epson EB-E12 Projector, 3LCD Technology

Epson EB-E12 Projector – Detailed Specifications

Key Features

• Brand: Epson
• Model: EB-E12
• Product Type: XGA Business & Education Projector
• Projection Technology: 3LCD Technology / RGB liquid crystal shutter projection system
• Native Resolution: XGA – 1024 × 768 pixels
• Aspect Ratio: 4:3
• Brightness: 3,600 lumens white and colour light output
• Contrast Ratio: 15,000:1
• Display Size: Up to 350 inches, depending on projection mode
• Lamp Life: Up to 6,000 hours Normal / 12,000 hours ECO
• Built-in Speaker: 2W mono
• Weight: Approximately 2.4 kg
• Colour: White

Display & Image

• Projection System: RGB liquid crystal shutter projection system (3LCD)
• LCD Panel: 0.55-inch C2 Fine
• Panel Technology: Poly-silicon TFT active matrix
• Pixel Count: 786,432 dots (1,024 × 768) × 3
• Native Resolution: 1,024 × 768 XGA
• Aspect Ratio: 4:3
• Colour Reproduction: Up to 16.77 million colours
• Colour Light Output: 3,600 lumens
• White Light Output: 3,600 lumens
• White Light Output in ECO: 2,200 lumens
• Contrast Ratio: 15,000:1
• Keystone Correction: ±30° horizontal and ±30° vertical
• Quick Corner: Supported
• Split Screen: Supported

Projection & Lens

• Lens Type: Manual focus
• Optical Zoom: No optical zoom
• Digital Zoom: 1.0–2.0×
• F-number: 1.44
• Focal Length: 16.7 mm
• Throw Ratio: 1.44–2.88
• Projection Size: 30–350 inches in Wide mode
• Projection Distance: Approximately 0.87–10.34 m
• Standard 60-inch Screen Distance: Approximately 1.76 m
• Lens Shift: Not supported

Lamp & Maintenance

• Light Source: 210W UHE lamp
• Lamp Life – Normal: Up to 6,000 hours
• Lamp Life – ECO: Up to 12,000 hours
• Air Filter: High-efficiency filter
• Air Filter Maintenance: Up to 6,000/12,000 hours depending on operating conditions
• Direct Power On/Off: Yes
• Start-up Period: Less than 7 seconds for Epson logo
• Warm-up Period: Approximately 30 seconds

Connectivity

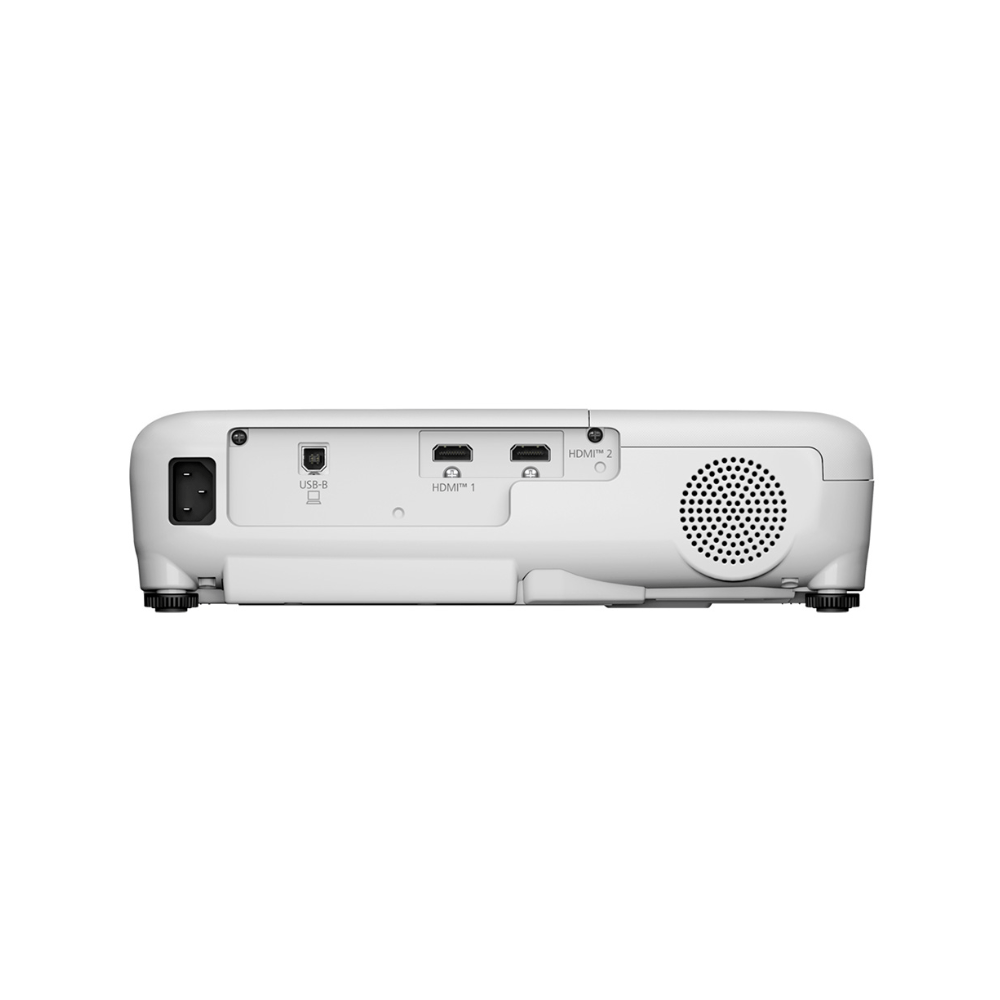

• HDMI: 2 × HDMI Type A
• HDCP: HDCP 1.4
• USB: 1 × USB Type-B
• Network: Not available
• Wireless LAN: Not built-in
• Audio Input: Not available
• Audio Output: Not available
• VGA/D-Sub: Not available
• RS-232C: Not available

Audio

• Built-in Speaker: Yes
• Speaker Output: 2W
• Speaker Type: Mono/Monaural

Noise Level

• Normal Mode: Approximately 37 dB
• ECO Mode: Approximately 28 dB

Power

• Power Supply: 100–240V AC
• Frequency: 50/60Hz
• Power Consumption: Varies by operating mode and voltage
• Standby Consumption: Approximately 0.3W in the applicable standby mode

Physical Specifications

• Dimensions: Approximately 302 × 234 × 77 mm excluding raised section/feet
• Maximum Dimensions: Approximately 302 × 237 × 82 mm
• Weight: Approximately 2.4 kg
• Colour: White
