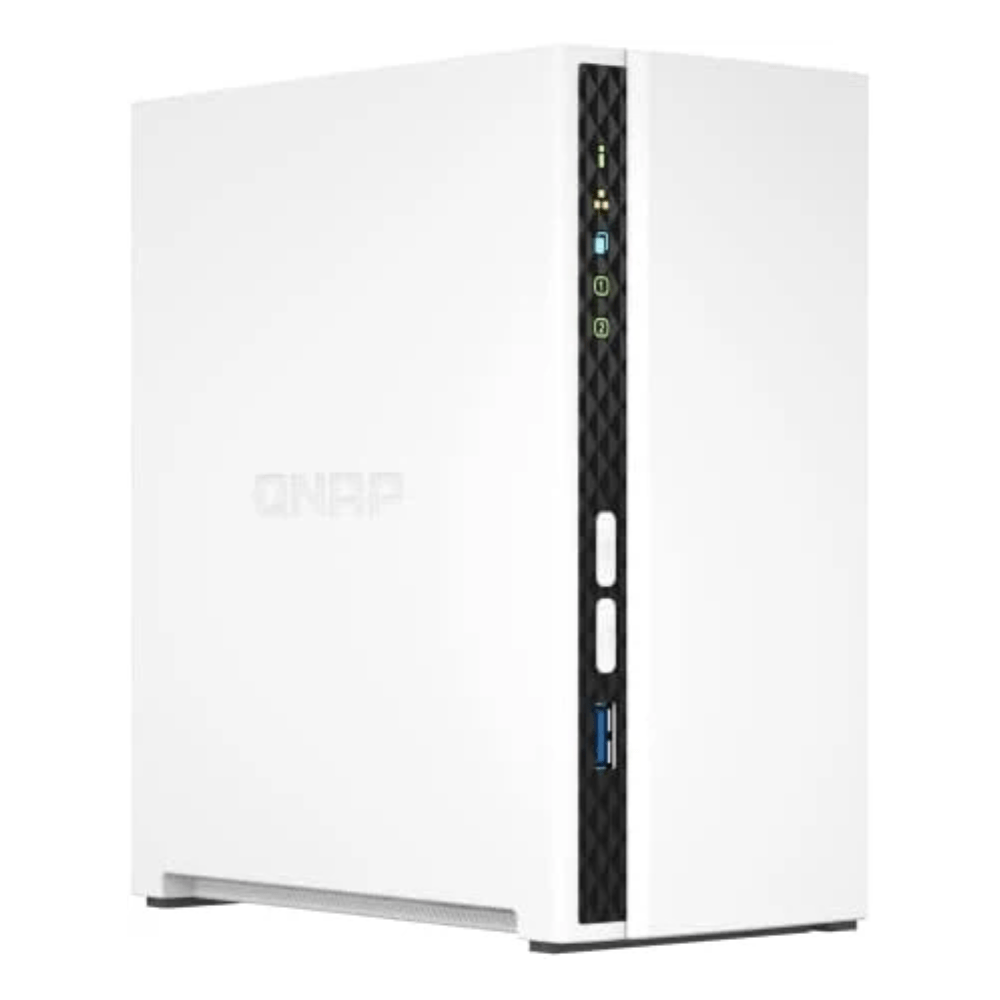

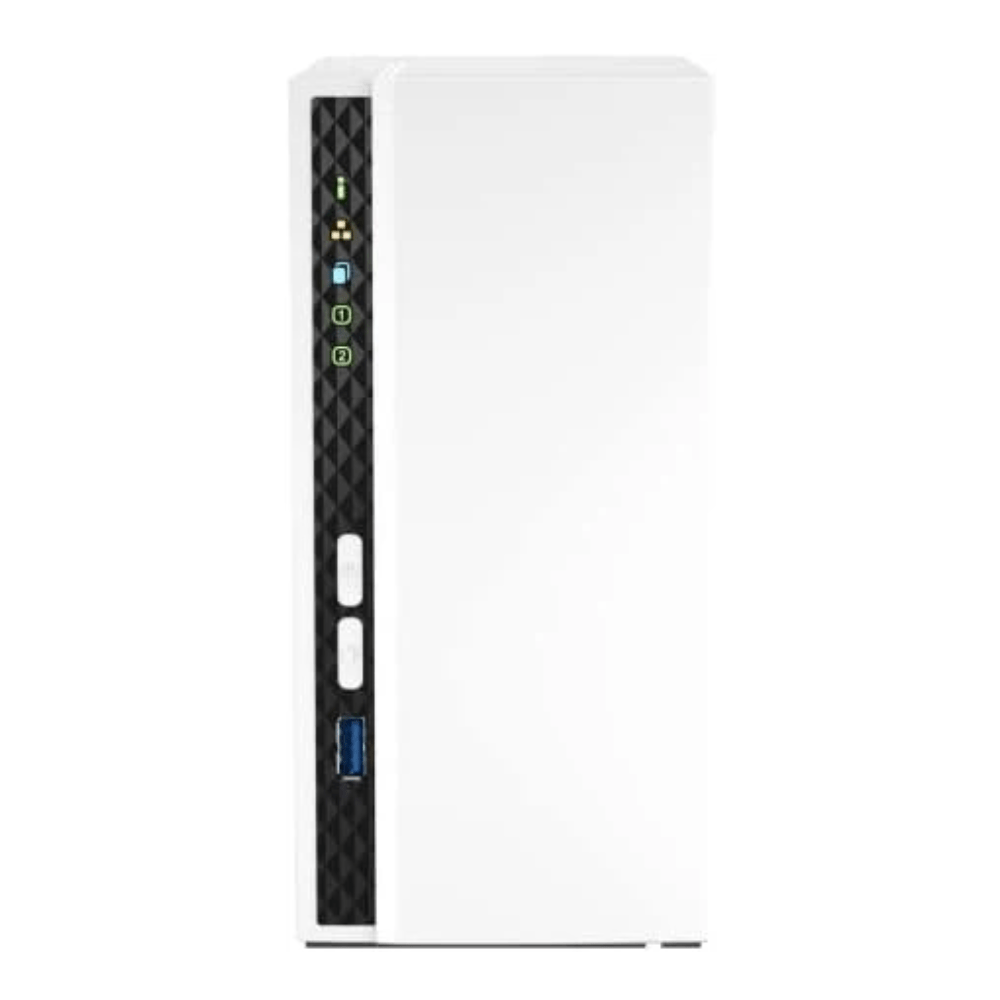

QNAP TS-233 2-Bay Desktop NAS – Detailed Specifications
General
- Model: QNAP TS-233
- Product Type: 2-Bay Desktop Network Attached Storage (NAS)
- Form Factor: Tower/Desktop
- Drive Bays: 2 × 3.5″/2.5″ SATA 6Gb/s HDD/SSD
- Hot-Swappable Drives: No
- Operating System: QTS 5.x
- Recommended Use: Home, SOHO, Multimedia Storage, Personal Cloud, Backup, and Surveillance
Processor
- CPU: ARM Cortex-A55 Quad-Core
- Processor Speed: 2.0 GHz
- Architecture: 64-bit ARM
- Hardware Encryption: AES-NI 256-bit encryption acceleration
Memory
- Installed Memory: 2 GB DDR4 RAM
- Memory Type: DDR4 (Onboard)
- Memory Upgrade: Not expandable
- Flash Memory: 4 GB eMMC (Operating System Protection)
Drive Compatibility
- Drive Bays: 2
- Supported Drives:
- 3.5-inch SATA HDD
- 2.5-inch SATA HDD
- 2.5-inch SATA SSD
- Interface: SATA III (6 Gb/s)
- Maximum Raw Capacity: Depends on installed drive capacities
RAID Support
- RAID 0
- RAID 1
- JBOD
- Single Disk
Network
- LAN Ports: 1 × Gigabit Ethernet (RJ-45)
- Network Speed: 10/100/1000 Mbps
- Wake-on-LAN: Supported
- Jumbo Frame: Supported
USB Ports
- 1 × USB 3.2 Gen 1 Type-A (5 Gbps)
- 2 × USB 2.0 Type-A
File Systems
Internal
- EXT4
External
- EXT3
- EXT4
- NTFS
- FAT32
- HFS+
- exFAT (license may be required depending on region)
Performance Features
- Personal cloud storage
- Automatic file synchronization
- Real-time backup
- Snapshot protection
- Hybrid Backup Sync
- Qsync file synchronization
- Remote access through myQNAPcloud
- Cross-platform file sharing
Multimedia Features
- Multimedia Console
- QuMagie AI Photo Management
- Music Station
- Video Station
- DLNA Media Server
- Plex Media Server support (software installation)
- HDMI: Not available
Security
- AES 256-bit Volume Encryption
- SSL/TLS Encryption
- IP Blocking
- Firewall
- Two-Step Verification
- Snapshot Protection
- Malware Remover
- Security Counselor
Virtualization & Containers
- Container Station (lightweight container support)
- Docker-compatible container support (ARM-compatible images)
Backup Features
- Hybrid Backup Sync (HBS 3)
- Time Machine Backup
- Windows Backup
- USB One-Touch Backup
- Cloud Backup Support
- External Drive Backup
- Rsync Support
Surveillance
- QVR Elite Support
- IP Camera Recording
- Motion Detection
- Smart Surveillance Management
Cooling
- Cooling Fan: 80 mm
- Smart Fan Control: Yes
LED Indicators
- Power
- Status
- LAN
- HDD 1
- HDD 2
- USB
Buttons
- Power Button
- Reset Button
- USB Copy Button
Power
- Power Adapter: 65W External Adapter
- Input Voltage: 100–240V AC, 50/60 Hz
- Power Consumption:
- Operating: Approximately 12.4 W
- HDD Sleep: Approximately 4.0 W
Physical Specifications
- Dimensions (H × W × D): 188.6 × 90.2 × 156.3 mm
- Weight (Net): Approximately 1.11 kg (without drives)
- Color: White
Operating Environment
- Operating Temperature: 0°C to 40°C
- Relative Humidity: 5%–95% (non-condensing)
